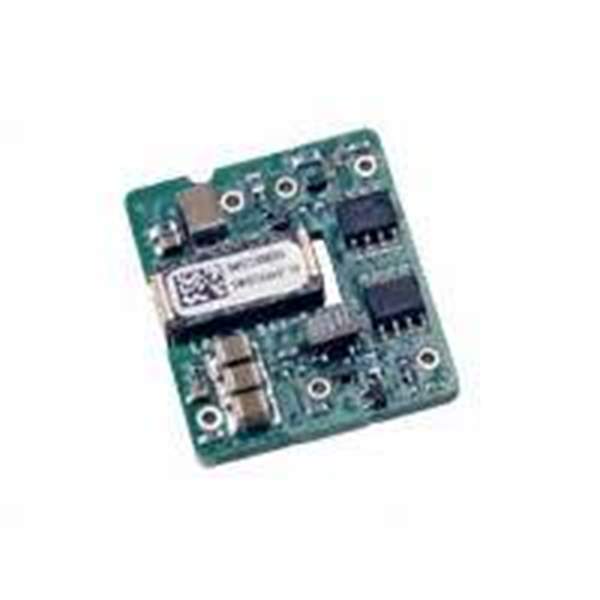

SW003A5F91 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer ABB Embedded Power
Packaging Bulk
Status Obsolete
Type Isolated Module
Voltage - Input (Minimum) 36V
Voltage - Input (Maximum) 75V
Voltage - Output 1 3.3V
Current - Output (Maximum) 3.5A
Power (W) 12W
Voltage - Isolation 2.25kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 85%
Mounting Style Through Hole
Manufacturer Package 6-DIP Module
Parts Dimension 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.6mm)
Control Features Enable, Active Low
Manufacturer Pack Quantity 90
MSL Level Not Applicable
Win Source Part Number 756989-SW003A5F91
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SW003A5F91 CAD Model

Description

The ABB Embedded Power isolated module is a reliable power supply solution for ITE (Commercial) applications.

  • Voltage Isolation: 2.25kV
  • Output Voltage: 3.3V
  • Features: Remote on/off, OCP, OVP, UVLO, active low control
  • Efficiency: 85%
  • Maximum Output Current: 3.5A
  • Package: 6-DIP module
  • Power Rating: 12W
  • Voltage Input Range: 36V to 75V
  • Operating Temperature Range: -40°C to 85°C
  • Status: Obsolete
  • Supply and Demand: Limited
  • Manufacturer Pack Quantity: 90
  • MSL Level: Not Applicable
