Same model may have multiple batches, images only for reference.

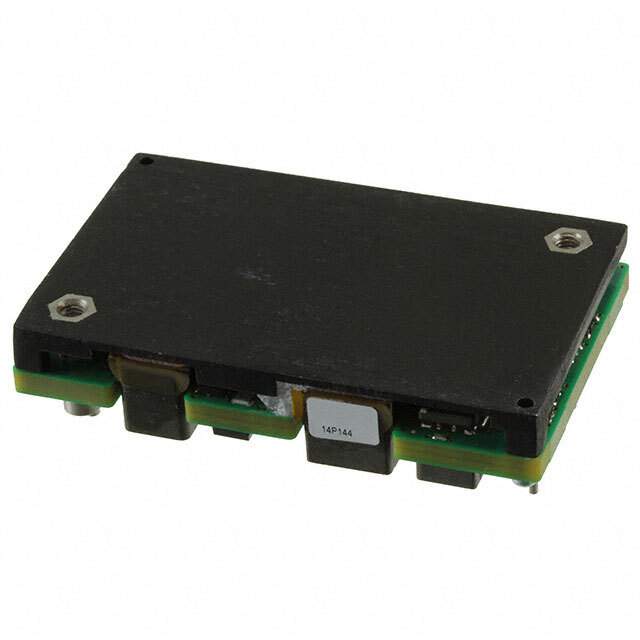

QHHD019A0B41-HZ Real Image
Same model may have multiple batches, images only for reference.

QHHD019A0B41-HZ

Part No QHHD019A0B41-HZ
Manufacturer ABB Embedded Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 225W / Isolated Module DC DC Converter 1 Output 12V 19A 18V - 75V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr ABB Power Electronics Inc.
Series Hammerhead™ QHHD019A0B
Package Bulk
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Current - Output (Max) 19A
Power (Watts) 225 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 93.5%
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/4 Brick
Size / Dimension 2.30" L x 1.44" W x 0.50" H (58.4mm x 36.6mm x 12.7mm)
Control Features Enable, Active Low
Base Product Number QHHD019
Standard Package 24
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1341237-QHHD019A0B41-HZ
Ultra Librarian 3D Model Ultra Librarian QHHD019A0B41-HZ CAD Model

Description

The Hammerhead™ QHHD019A0B series is a high-quality DC DC converter manufactured by ABB Power Electronics Inc.

  • Win Source Part Number: 1341237-QHHD019A0B41-HZ
  • Features: Remote On/Off, OCP, OTP, OVP, SCP, UVLO
  • Type: Isolated Module
  • Package: Bulk
  • Size/Dimension: 2.30" L x 1.44" W x 0.50" H (58.4mm x 36.6mm x 12.7mm)
  • Application: ITE (Commercial)
  • Power (Watts): 225W
  • Control Features: Enable, Active Low
  • Voltage Isolation: 2.25 kV
  • Number of Outputs: 1
  • Current - Output Max: 19A
  • Voltage - Input: 18V to 75V
  • Voltage - Output: 12V
  • Efficiency: 93.5%
  • Mounting Type: Through Hole
  • Package / Case: 8-DIP Module, 1/4 Brick
  • Operating Temperature: -40°C ~ 85°C
