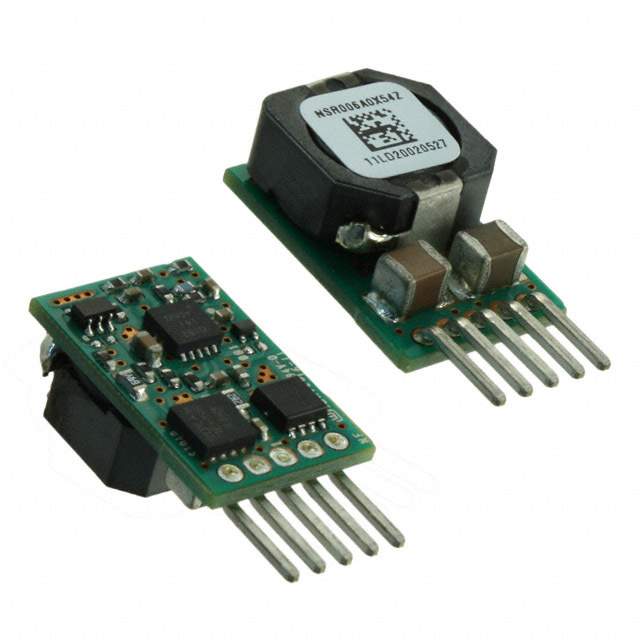

Same model may have multiple batches, images only for reference.

NSR006A0X4Z

Name: NSR006A0X4Z
Brand: ABB Embedded Power
SKU: 1350310
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	NSR006A0X4Z
Manufacturer	ABB Embedded Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 0.6-6V 36W / Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 6V 6A 4.5V - 14V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	ABB Power Electronics Inc.
Series	Naos Raptor
Package	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	14V
Voltage - Output 1	0.6 ~ 6V
Current - Output (Max)	6A
Power (Watts)	36 W
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	95.1%
Mounting Type	Through Hole
Package / Case	5-SIP Module
Size / Dimension	0.41" L x 0.31" W x 0.65" H (10.4mm x 7.9mm x 16.5mm)
Control Features	Enable, Active High
Base Product Number	NSR006
Standard Package	315
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1350310-NSR006A0X4Z
Ultra Librarian 3D Model	Ultra Librarian NSR006A0X4Z CAD Model

Alternative Products

Description

The ABB Power Electronics Inc. DC-DC converter is a non-isolated PoL module that belongs to the Power Supplies - Board Mount - DC DC Converters category.

Type: Non-Isolated PoL Module
Package: Tray
Standard Package: 315
Power (Watts): 36 W
Efficiency: 95.1%
Voltage - Input (Min): 4.5V
Voltage - Input (Max): 14V
Operating Temperature: -40°C ~ 85°C
MSL Level: 1 (Unlimited)
HTSUS Code: 8504.40.9580
