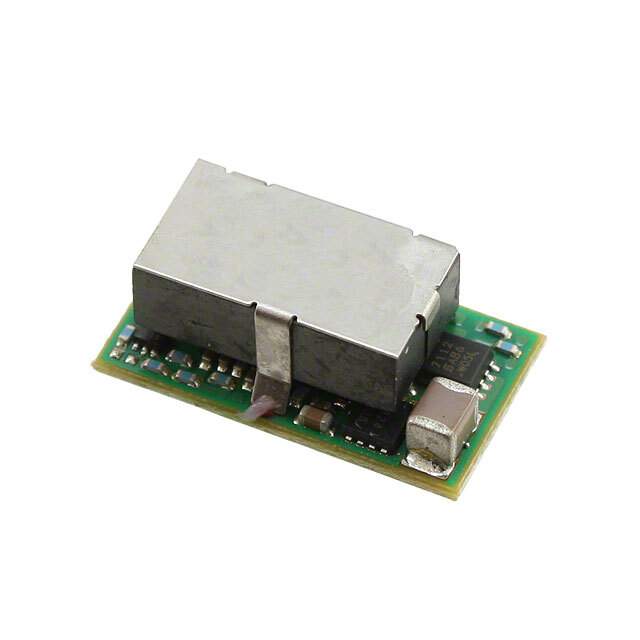

APXH012A0X43-SRZ Real Image
Same model may have multiple batches, images only for reference.

APXH012A0X43-SRZ

Part No APXH012A0X43-SRZ
Manufacturer ABB Embedded Power
Catalog Power Supplies Board Mount DCDC Converters
Description 2.4 - 5.5Vdc input; 0.6Vdc to 3.63Vdc output; 12A output current | DC DC CONVERTER 0.6-3.63V 44W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer ABB Embedded Power
Packaging Tape and Reel
Status Obsolete
Type Non-Isolated PoL Module
Voltage - Input (Minimum) 2.4V
Voltage - Input (Maximum) 5.5V
Voltage - Output 1 0.6 ~ 3.63V
Current - Output (Maximum) 12A
Power (W) 44W
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 94.6%
Mounting Style SMD
Manufacturer Package Module
Parts Dimension 0.80" L x 0.45" W x 0.33" H (20.3mm x 11.4mm x 8.5mm)
Control Features Enable, Active High
Manufacturer Pack Quantity 250
MSL Level 2A (4 Weeks)
Win Source Part Number 722226-APXH012A0X43-SRZ
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian APXH012A0X43-SRZ CAD Model

Description

The ABB Embedded Power Non-Isolated PoL Module is an electronic component designed for use in ITE (Commercial) applications. The module comes in a tape and reel packaging and has a mounting style of SMD.

  • Features: Remote On/Off, OCP, OTP, UVLO
  • Voltage Output Range: 0.6 ~ 3.63V
  • Efficiency: 94.6%
  • Supply and Demand Status: limited
  • Manufacturer Pack Quantity: 250
  • MSL Level: 2A (4 weeks)
  • Power Output: 44W
  • Voltage Input Range: 2.4V to 5.5V
  • Current Output: 12A
  • Parts Dimension: 0.80" L x 0.45" W x 0.33" H (20.3mm x 11.4mm x 8.5mm)
