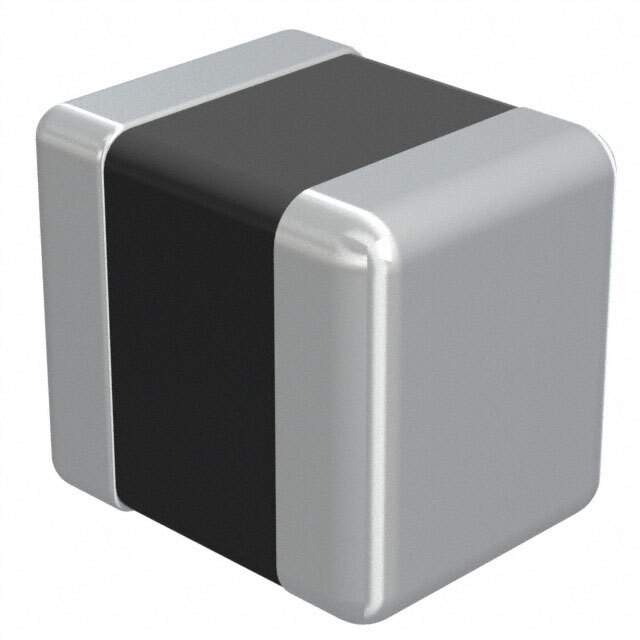

LBM2016TR56J

Name: LBM2016TR56J
Brand: Taiyo Yuden
SKU: 985053
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LBM2016TR56J
Manufacturer	Taiyo Yuden
Catalog	Fixed Inductors
Description	FIXED IND 560NH 410MA 290MOHM SM / 560 nH Unshielded Drum Core, Wirewound Inductor 410 mA 290mOhm 0806 (2016 Metric)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Taiyo Yuden
Series	LB, M Type
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	560 nH
Tolerance	±5%
Current Rating (Amps)	410 mA
Shielding	Unshielded
DC Resistance (DCR)	290mOhm
Q @ Freq	30 @ 25.2MHz
Frequency - Self Resonant	300MHz
Temperature Range - Operating	-40°C ~ 105°C
Inductance Frequency - Test	25.2 MHz
Mounting	SMD (SMT)
Package / Case	0806 (2016 Metric)
Supplier Device Package	0806 (2016 Metric)
Dimension	0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max)	0.071" (1.80mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	587-3105-6,LQ LBM 2016TR56J,587-3105-1,587-3105-2
Standard Package	2,000
Win Source Part Number	985053-LBM2016TR56J
Ultra Librarian 3D Model	Ultra Librarian LBM2016TR56J CAD Model

Alternative Products

Description

The LBM2016TR56J fixed inductor from Taiyo Yuden is a drum core, wirewound component with a 560 nH inductance.

Inductance: 560 nH
Tolerance: ±5 percent
Shielded: Unshielded
Max Seated Height: 0.071 inches (1.80mm)
Mounting: SMD (SMT)
DC Resistance (DCR): 290mOhm
Q @ Freq: 30 @ 25.2MHz
Frequency-Self Resonant: 300MHz
Packaging: Tape and Reel
