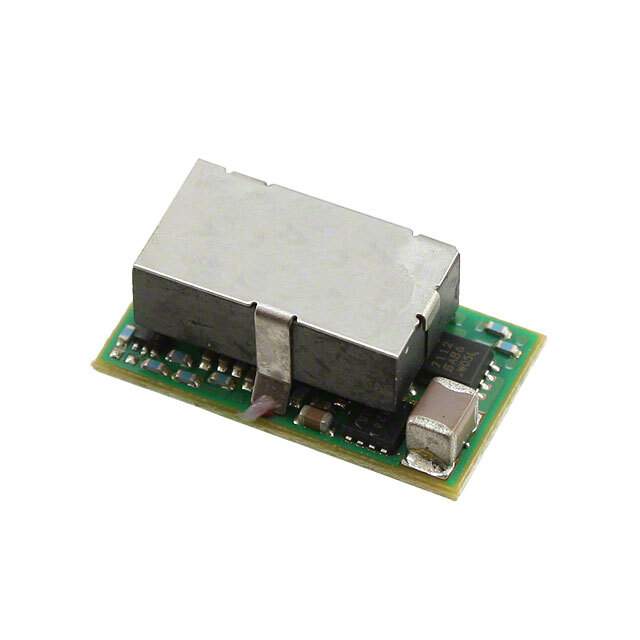

APTH012A0X3-SRZ Real Image
Same model may have multiple batches, images only for reference.

APTH012A0X3-SRZ

Part No APTH012A0X3-SRZ
Manufacturer ABB Embedded Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.6-3.6V 44W / Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 3.6V 12A 2.4V - 5.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr ABB Power Electronics Inc.
Series Micro TLynx™
Package Tape & Reel (TR)
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.4V
Voltage - Input (Max) 5.5V
Voltage - Output 1 0.6 ~ 3.6V
Current - Output (Max) 12A
Power (Watts) 44 W
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 94%
Mounting SMD (SMT)
Package / Case 10-SMD Module
Dimension 0.80" L x 0.45" W x 0.33" H (20.3mm x 11.4mm x 8.5mm)
Control Features Enable, Active Low
Base Product Number APTH012
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8504.40.9580
Other Names CC109130465,APTH012A0X3SRZ,555-1128-6,555-1128-2,555-1128-1
Standard Package 250
Win Source Part Number 1191211-APTH012A0X3-SRZ
Ultra Librarian 3D Model Ultra Librarian APTH012A0X3-SRZ CAD Model

Description

The APTH012A0X3-SRZ is a non-isolated PoL module from the Micro TLynx™ series from ABB Power Electronics Inc.

  • Series: Micro TLynx™
  • Power: 44 W
  • Efficiency: 94%
  • Part Type: Custom
  • Remote On/Off: Yes
  • RoHS Compliant: Yes
  • Package: Tape and Reel (TR)
  • Standard Package: 250
  • Mounting: SMD (SMT)
