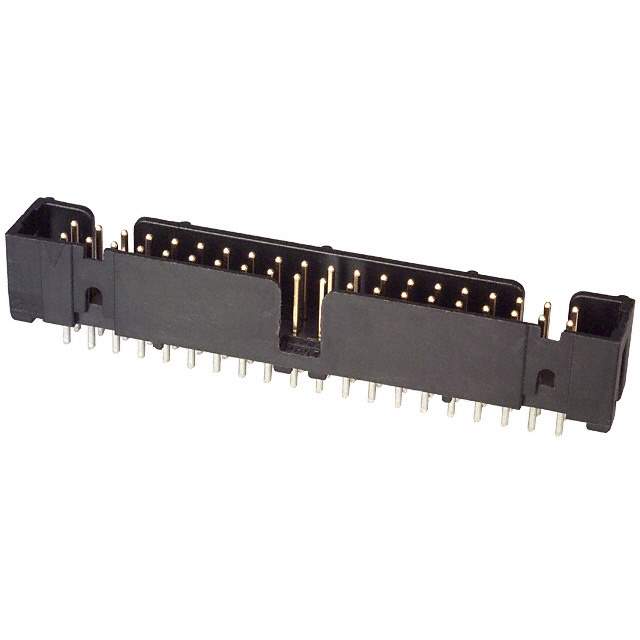

N2534-6002-RB Real Image
Same model may have multiple batches, images only for reference.

N2534-6002-RB

Part No N2534-6002-RB
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN HEADER VERT 34POS 2.54MM / Connector Header Through Hole 34 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer 3M
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 34
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.243" (6.17mm)
Contact Length - Post 0.112" (2.84mm)
Insulation Height 0.390" (9.91mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features Keying Slot
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1.75A
Contact Finish Thickness - Post 200.0µin (5.08µm)
Base Product Number N2534
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number Q5741112ST,XP000004877,7000057635,51111627365,MHC34K,80400031441,N25346002RB,5111162736,N2534-6002RB
Standard Package 280
Win Source Part Number 1332326-N2534-6002-RB
Ultra Librarian 3D Model Ultra Librarian N2534-6002-RB CAD Model

Description

The 3M 1332326-N2534-6002-RB is a male pin header connector with 34 positions in a 2-row configuration.

  • Positions: 34
  • Rows: 2
  • Application: Board-to-Board and Cable-to-Board
  • Fastening Type: Push-Pull
  • Material: Copper Alloy
  • Contact Finish (Mating): Gold
  • Post Length: 0.112 inches
  • Contact Finish (Post): Tin
  • Insulation: Black polycyclohexylenedimethylene terephthalate (PCT), polyester, and glass filled
  • Flammability Rating: UL94 V-0
  • Mating Pitch: 0.100 inches (2.54mm)
  • Contact Length (Mating): 0.243 inches (6.17mm)
  • Temperature Range: -55°C to 105°C
  • Current Rating: 1.75A
  • RoHS3 Compliant: Yes
  • Standard Package: 280 Units
