Same model may have multiple batches, images only for reference.

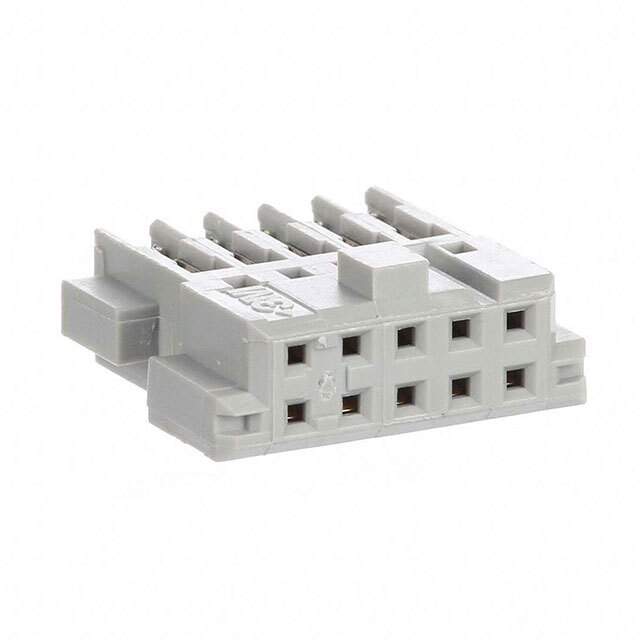

CHG-2010-J01010-KEP Real Image
Same model may have multiple batches, images only for reference.

CHG-2010-J01010-KEP

Part No CHG-2010-J01010-KEP
Manufacturer 3M
Catalog Custom Parts (B - D)
Description .100" × .100" Polarized Wiremount, 2 row for .100" Pitch Notched Flat Cable or Discrete Wire
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Grey
Connector Type IDC, Receptacle, Socket
Contact Gender Female
Contact Plating Gold
Current Rating 1.5 A
Gender Female
Housing Color Grey
Housing Material Glass
Lead Free Lead Free
Max Operating Temperature 105 °C
Min Operating Temperature -55 °C
Mount Cable, Free Hanging
Number of Contacts 10
Number of Positions 10
Number of Rows 2
Orientation Straight
Pitch 2.54 mm
REACH SVHC No SVHC
RoHS Compliant
Row Spacing 2.54 mm
Termination IDC
Weight 453.59237 g
Wire/Cable Type Discrete
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 22 AWG
Win Source Part Number 1206835-CHG-2010-J01010-KEP
Categories Custom Parts
Manufacturer 3M
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CHG-2010-J01010-KEP CAD Model

Description

The 3M CHG-2010-J01010-KEP is an IDC, receptacle, socket connector designed for use in electronic devices.

  • Positions: 10
  • Pitch: 2.54mm
  • Color: grey
  • Rows: two
  • Row Spacing: 2.54mm
  • Termination: IDC
  • Current Rating: 1.5A
  • Mounting: cable, free hanging
  • RoHS Compliance: lead-free and RoHS compliant
  • Minimum Operating Temperature: -55°C
  • Maximum Operating Temperature: 105°C
  • Wire Gauge Range: 22-24 AWG
  • ECCN: EAR99
  • REACH SVHC: not applicable
  • Manufacturer: 3M
