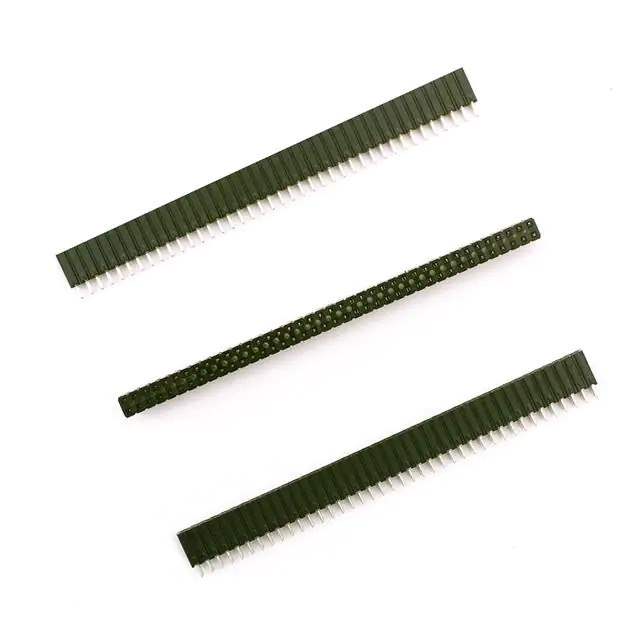

Same model may have multiple batches, images only for reference.

929850-01-04-RA

Name: 929850-01-04-RA
Brand: 3M
SKU: 1183126
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	929850-01-04-RA
Manufacturer	3M
Catalog	Rectangular Connectors
Description	3M BOARDMOUNT SOCKET, 929 SERIES
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	3M
Series	929
Package	Bulk
Product Status	Active
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board
Number of Positions	4
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.325" (8.25mm)
Contact Length - Post	0.125" (3.18mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	2A
Voltage Rating	1500V
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Shape	Square
Contact Material	Copper Alloy
Base Product Number	929850
Standard Package	1,296 pcs
Moisture Sensitivity Level (MSL)	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1183126-929850-01-04-RA
Ultra Librarian 3D Model	Ultra Librarian 929850-01-04-RA CAD Model

Description

The 3M Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets are reliable and versatile components for electronic devices.

Positions: 4
Contact Type: Forked
Termination: Solder
Fastening Type: Push-Pull
Contact Finish: Gold
Contact Finish Thickness: 10.0µin
