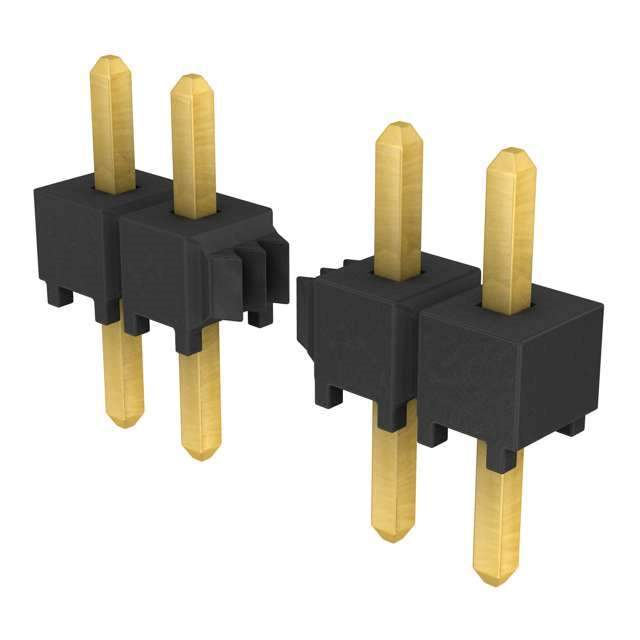

The Samtec Inc. TSW-149-06-G-S connector is a 49-position header with male pins and a pitch of 0.100" (2.54mm). It has a gold contact finish and a thickness of 10.0 µin (0.25 µm) for mating and a gold contact finish with a thickness of 3.00 µin (0.076 µm) for post.

• Positions: 49
• Pitch: 0.100" (2.54mm)
• Contact Finish (Mating): gold (10.0 µin / 0.25 µm)
• Contact Finish (Post): gold (3.00 µin / 0.076 µm)
• Contact Type: square
• Contact Length (Mating): 0.105" (2.67mm)
• Contact Length (Post): 0.095" (2.41mm)
• Contact Material: phosphor bronze
• Voltage Rating: 350VAC
• Insulation Color: black
• Insulation Material: polybutylene terephthalate (PBT)
• Temperature Range: -55°C to 125°C
• RoHS Compliant: yes
• Mounting Type: through-hole
• Shrouded: unshrouded
• Application: board-to-board or cable
