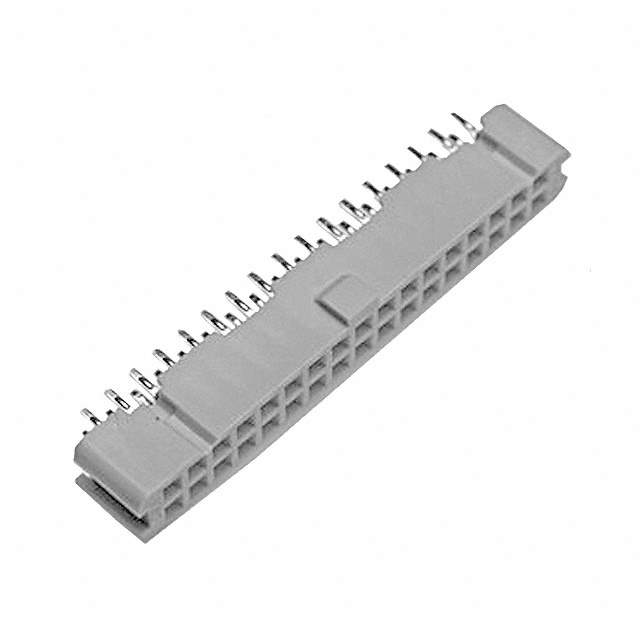

9150-4500PL Real Image
Same model may have multiple batches, images only for reference.

9150-4500PL

Part No 9150-4500PL
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN RCPT 50POS 0.1 GOLD PCB / 50 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr 3M
Series 9100
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 50
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 12.0µin (0.30µm)
Insulation Color Gray
Insulation Height 0.354" (9.00mm)
Contact Length - Post 0.110" (2.79mm)
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Features Polarizing Key
Current Rating (Amps) 1A
Voltage Rating 1000V
Insulation Material Polybutylene Terephthalate (PBT) , Glass Filled
Contact Shape Square
Contact Material Copper Alloy
Contact Finish Thickness - Post Flash
Base Product Number 9150
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340268-9150-4500PL
Ultra Librarian 3D Model Ultra Librarian 9150-4500PL CAD Model

Description

The 3M 9100 series receptacle female sockets are rectangular connectors with a pitch of 0.100 inches (2.54 mm) and 50 positions.

  • Series: 9100
  • Connector Type: Receptacle
  • Pitch: 0.100 inches (2.54 mm)
  • Number of Positions: 50
  • Contact Gender: Female Socket
  • Termination: Kinked Pin, Soldered
  • Fastening Type: Push-Pull
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Voltage Rating: 1000V
  • Current Rating: 1A
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass-Filled
  • Insulation Color: Gray
  • Mounting Type: Through-Hole
  • Row Spacing: 0.100 inches (2.54 mm)
  • Insulation Height: 0.354 inches (9.00 mm)
  • Contact Shape: Square
  • Temperature Range: -55°C to 105°C
  • Applications: Board-to-Board or Cable Applications
