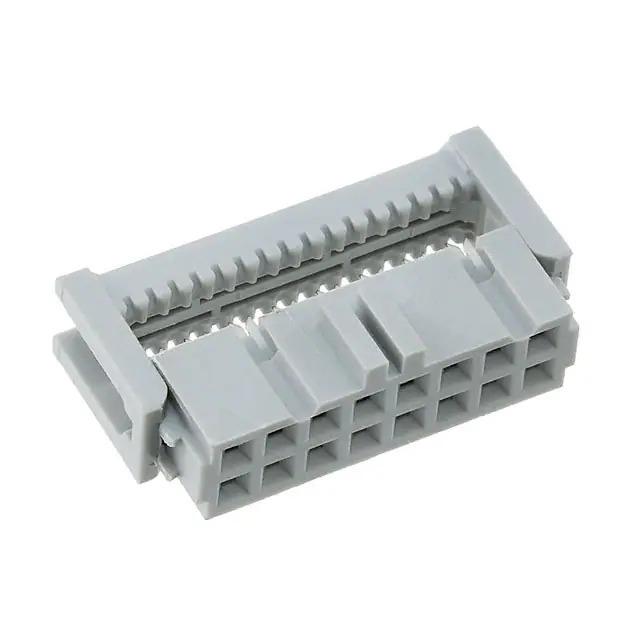

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Free Hanging, Panel Mount
Mfr 3M
Series 891
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 16
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Free Hanging (In-Line)
Fastening Type -
Cable Termination IDC
Wire Type Ribbon Cable
Wire Gauge 26-28 AWG
Features Feed Through, Polarizing Key
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Gray
Base Product Number 89116
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1377644-89116-0101
Ultra Librarian 3D Model Ultra Librarian 89116-0101 CAD Model

Description

The 3M 89116-0101 is a rectangular connector from 3M's 891 series.

  • Series: 891
  • Mounting Type: Free Hanging, Panel Mount
  • Features: Polarizing Key
  • Cable Type: Ribbon Cable terminated with IDC connectors
  • Contact Finish: Gold
  • Number of Positions: 16
  • Number of Rows: 2
  • Operating Temperature: -40°C to 85°C
  • Color: Gray
  • Pitch: 0.100" (2.54mm)
