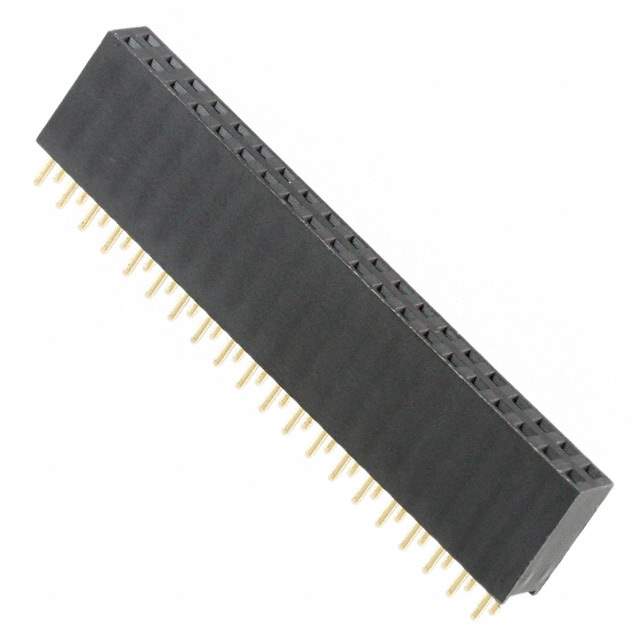

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer 3M
Series 4P01
Packaging Tube
Connector Type Stackthrough, (PC/104)
Connector Style PC/104
Number of Positions 40
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 2
Mounting Style Through Hole
Termination Solder
Contact Finish Gold
Contact Finish Thickness 3μin (0.08μm)
Current Rating 3A
Material Flammability Rating UL94 V-0
Operating Temperature Range -40°C ~ 105°C
Win Source Part Number 763813-4P01-2D02-DA
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 4P01-2D02-DA CAD Model

Description

The 763813-4P01-2D02-DA is a stackthrough connector manufactured by 3M.

  • Series: 4P01
  • Packaging: Tube
  • Positions: 40
  • Pitch: 0.100" (2.54mm)
  • Mounting Style: Through hole
  • Operating Temperature Range: -40°C ~ 105°C
  • Category: Connectors and Interconnects
  • Popularity: Medium
