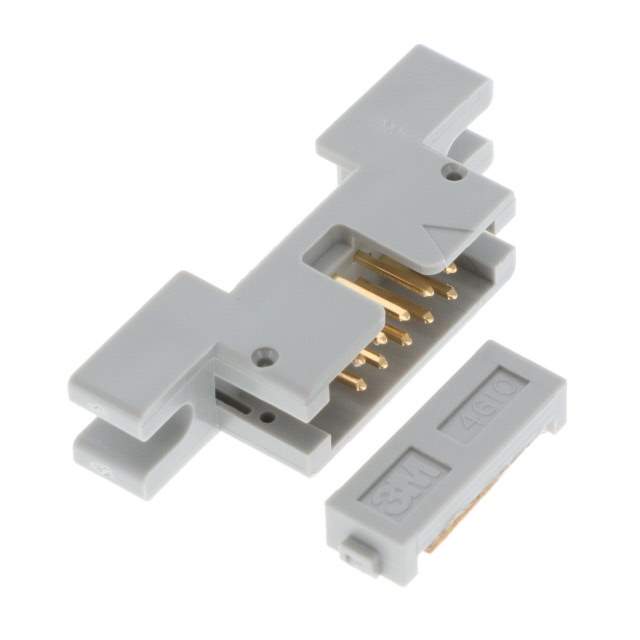

Same model may have multiple batches, images only for reference.

4610-6050

Name: 4610-6050
Brand: 3M
SKU: 1034312
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	4610-6050
Manufacturer	3M
Catalog	Rectangular Connectors
Description	CONN PLUG 10P IDC 26-28AWG GOLD / 10 Position Rectangular Plug Connector IDC Gold 26-28 AWG, Stranded or Solid
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Free Hanging, Panel Mount
Mfr	3M
Series	4600
Package	Bulk
Connector Type	Plug
Contact Type	Male Pin
Number of Positions	10
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Cable Termination	IDC
Wire Type	Discrete or Ribbon Cable
Wire Gauge	26-28 AWG, Stranded or Solid
Features	Feed Through
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Color	Gray
Base Product Number	4610
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	MPA10G,MPL10G,MPA10K,80-6101-7049-2,5400720493,7000005955,7100234285,80610170492,MPL10K,46106050,54007204930
Standard Package	300
Win Source Part Number	1034312-4610-6050
Ultra Librarian 3D Model	Ultra Librarian 4610-6050 CAD Model

Alternative Products

Description

The 3M 4600 series plug connector is a rectangular connector that is designed for free hanging and panel mount applications.

Positions: 10
Pitch: 0.100" (2.54mm)
Contact Type: Male Pin
Contact Plating: Gold
Contact Plating Thickness: 30.0µin (0.76µm)
Wire Gauge: 26-28 AWG
Termination: IDC
Wire Type: Discrete or Ribbon Cable
Packaging: Bulk
Standard Package: 300
