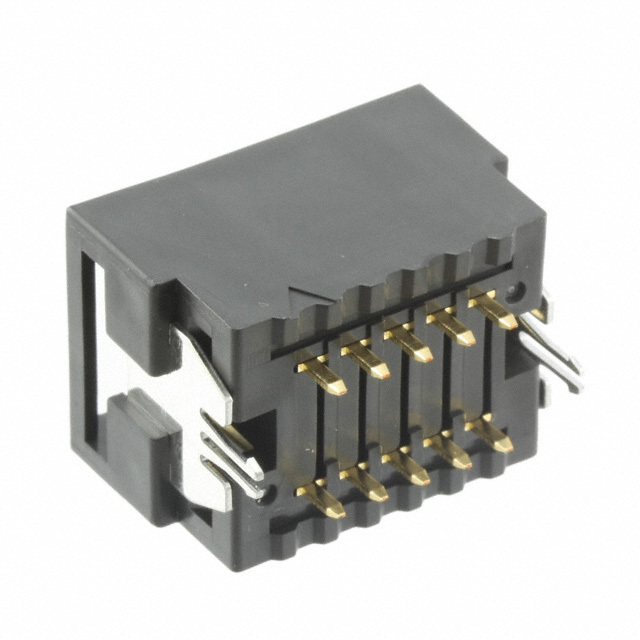

Same model may have multiple batches, images only for reference.
38202-52S3-000 PL 3M – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

38202-52S3-000 PL

Part No 38202-52S3-000 PL
Manufacturer 3M
Catalog Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN RCPT 2POS 0.1 GOLD PCB R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Receptacle
Contact Type Female Socket
Style Board to Cable/Wire
Number of Positions 2
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Insulation Color Black
Insulation Height 0.512" (13.00mm)
Contact Length - Post 0.100" (2.54mm)
Temperature Range - Operating -20°C ~ 70°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Features Board Lock
Current Rating (Amps) 5A
Voltage Rating 160V
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1626438-38202-52S3-000 PL
Ultra Librarian 3D Model Ultra Librarian 38202-52S3-000 PL CAD Model
