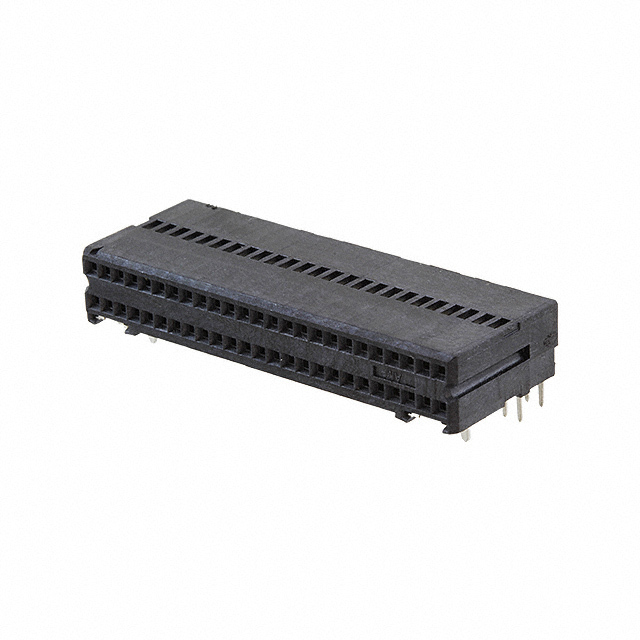

Same model may have multiple batches, images only for reference.
5-147384-3 TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

5-147384-3

Part No 5-147384-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN RCPT 30POS 0.05 GOLD SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 30
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.187" (4.75mm)
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Mated Stacking Heights 6.35mm, 8.13mm, 9.91mm
Features Board Lock, Pick and Place
Current Rating (Amps) 0.5A per Contact
Voltage Rating 30VAC
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1613579-5-147384-3
Ultra Librarian 3D Model Ultra Librarian 5-147384-3 CAD Model
