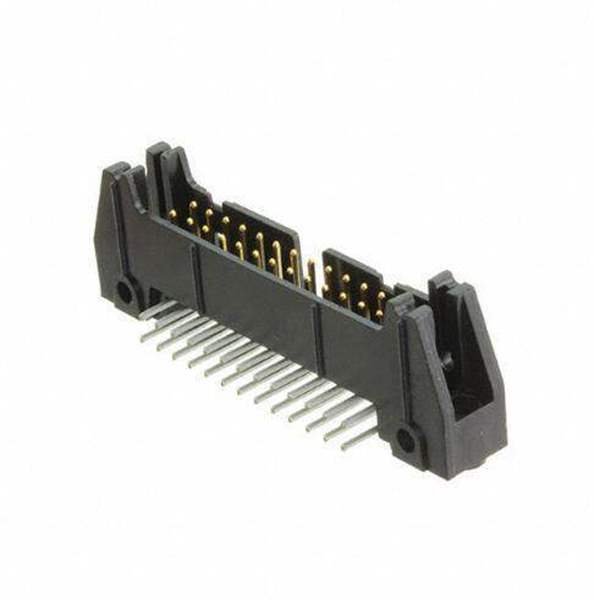

3429-5002 3M
Same model may have multiple batches, images only for reference.

3429-5002

Part No 3429-5002
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN HEADER R/A 26POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer 3M
Package Bulk
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Termination Solder
Win Source Part Number WS1208049-3429-5002
Ultra Librarian 3D Model Ultra Librarian 3429-5002 CAD Model

Description

Connector Header Through Hole, Right Angle 26 position 0.100" (2.54mm)
