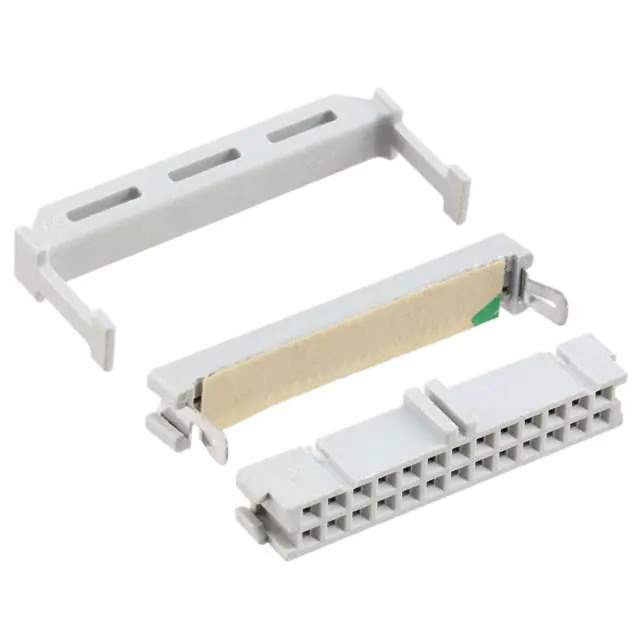

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Free Hanging, Panel Mount
Mfr 3M
Series 3000
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 26
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Free Hanging (In-Line)
Cable Termination IDC
Wire Type Ribbon Cable
Wire Gauge 26-28 AWG
Features Feed Through, Polarizing Key, Strain Relief
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Gray
Base Product Number 3399
Standard Package 300 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 855750-3399-6626
Ultra Librarian 3D Model Ultra Librarian 3399-6626 CAD Model

Description

The 3M 3399 is a 26-position rectangular connector from the 3000 series.

  • Positions: 26
  • Series: 3000
  • Mounting Type: Free Hanging, Panel Mount
  • Connector Type: Receptacle
  • Termination: Ribbon Cable
  • Pitch: 0.100 inches (2.54mm)
  • Color: Gray
  • Features: Feed Through, Polarizing Key, Strain Relief
  • Contact Gender: Female Socket
  • Contact Finish: Gold
  • Wire Gauge: 26-28 AWG
  • Voltage Rating: -
  • Current Rating: -
  • Packaging: Bulk
  • Standard Package: 300 pieces
  • Insulation Material: Thermoplastic
  • MSL Level: 1 (unlimited)
  • Product Status: Active
