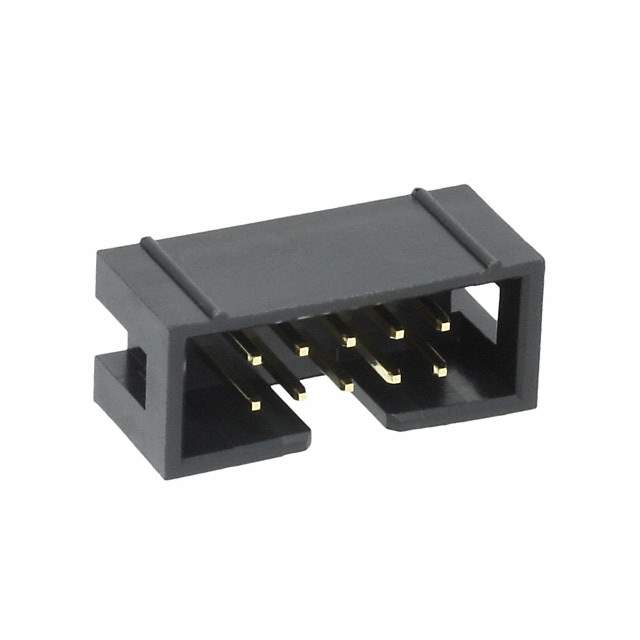

30310-6002HB

Part No 30310-6002HB
Manufacturer 3M
Catalog Circular Connectors - Housings
Description CONN HEADER VERT 10POS 2.54MM  /  Connector Header Through Hole 10 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr 3M
Series 303
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.236" (6.00mm)
Contact Length - Post 0.110" (2.79mm)
Insulation Height 0.366" (9.30mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating Flash
Contact Finish - Post Gold
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Features Keying Slot
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A
Contact Finish Thickness - Post Flash
Base Product Number 30310
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SE008001767,-30310-6002HB,51138446246,05111161772,303106002HB,5113844624,7000008406
Standard Package 1,000
Win Source Part Number 965359-30310-6002HB
Ultra Librarian 3D Model Ultra Librarian 30310-6002HB CAD Model

Description

30310-6002HB from 3M is a circular connector housing designed for applications where dependable interconnect packaging is important in equipment assembly, maintenance, and field service. In practical use, housings in this category are often selected for cable-to-equipment connections, industrial assemblies, and electronic systems that need organized mating interfaces and consistent mechanical fit. Engineers typically evaluate parts like this for compatibility with the broader connector system, availability, and long-term sourcing stability rather than housing details alone. For new designs, 3M branding can make this part relevant when teams are standardizing on known interconnect suppliers or supporting existing assemblies already built around 3M components. The current lifecycle status for 30310-6002HB is information not available, so buyers should confirm supply continuity with the manufacturer or authorized distributors before committing it to production. RoHS compliance information is also not available in the provided data and should be verified through official 3M documentation or current compliance declarations.
