224-5809-00-0602 3M – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

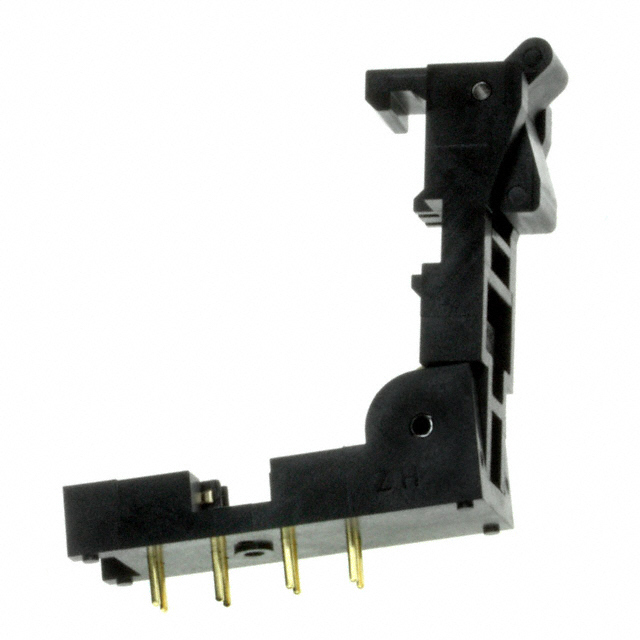

224-5809-00-0602

Part No 224-5809-00-0602
Manufacturer 3M
Catalog Sockets for ICs, Transistors
Description CONN SOCKET SIP ZIF 24POS GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type SIP, ZIF (ZIP)
Number of Positions or Pins (Grid) 24 (1 x 24)
Pitch - Mating 0.100" (2.54mm)
Contact Finish - Mating Gold
Contact Material - Mating Beryllium Copper
Mounting Type Through Hole
Termination Solder
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Gold
Contact Finish Thickness - Post 30.0µin (0.76µm)
Contact Material - Post Beryllium Copper
Housing Material Polysulfone (PSU), Glass Filled
Temperature Range - Operating -55°C ~ 125°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1629564-224-5809-00-0602
Ultra Librarian 3D Model Ultra Librarian 224-5809-00-0602 CAD Model
