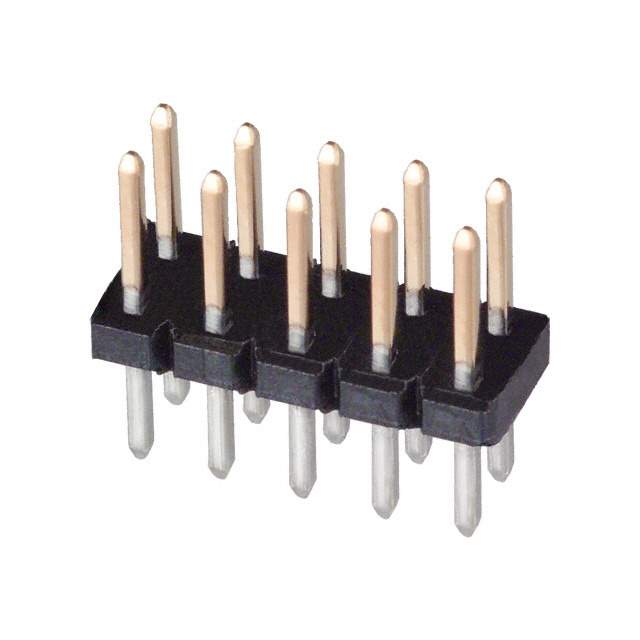

151210-8422-RB

Get a Quote

Part No	151210-8422-RB
Manufacturer	3M
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 10POS 2MM / Connector Header Through Hole 10 position 0.079" (2.00mm)
Datasheet	151210-8422-RB Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	3M
Series	1512
Package	Bulk
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.152" (3.86mm)
Contact Length - Post	0.118" (3.00mm)
Overall Contact Length	0.329" (8.36mm)
Insulation Height	0.060" (1.52mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP) , Glass Filled
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A
Contact Finish Thickness - Post	200.0µin (5.08µm)
Base Product Number	151210
Standard Package	400
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1341270-151210-8422-RB
Ultra Librarian 3D Model	Ultra Librarian 151210-8422-RB CAD Model

Alternative Products

Description

The 3M 1512 series header male pins are rectangular connectors with a pitch of 0.079 inches (2.00 mm) and 10 positions.

Pitch: 0.079 inches (2.00 mm)
Number of Positions: 10
Contact Type: Male pin
Termination: Soldered
Fastening Type: Push-pull
Contact Material: Copper alloy
Contact Finish: Gold
Current Rating: 1A
Insulation Material: Liquid crystal polymer (LCP), glass-filled
Insulation Color: Black
Mounting Type: Through-hole
Row Spacing: 0.079 inches (2.00 mm)
Insulation Height: 0.060 inches (1.52 mm)
Contact Shape: Square
Operating Temperature: -55°C to 105°C
Application: Board-to-board or cable
