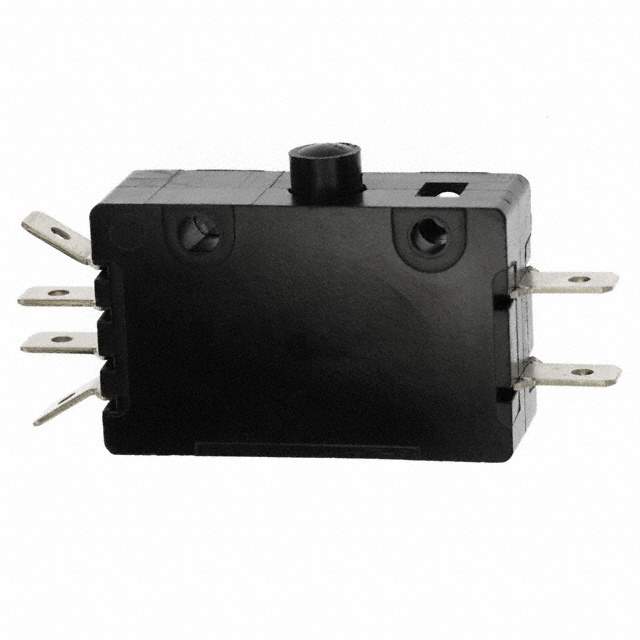

E19-00A Real Image
Same model may have multiple batches, images only for reference.

E19-00A

Part No E19-00A
Manufacturer ZF Electronics
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION DPDT 15A 125V / Switch DPDT Chassis Mount
Datasheet
E19-00A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr ZF Electronics
Series E
Package Bulk
Circuit DPDT
Switch Function On-Mom
Current Rating (Amps) 15A (AC)
Voltage Rating - AC 125 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.250" (6.3mm)
Operating Force 850gf
Pretravel 0.050" (1.27mm)
Differential Travel 0.015" (0.38mm)
Overtravel 0.079" (2.0mm)
Temperature Range - Operating -40°C ~ 105°C
Operating Position 0.285" (7.24mm)
Electrical Life 6,000 Cycles
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9040
Other Names 0E1900A0,0E19-00A0,0E1900AO,E19-00A0,0E19-00A,CH320,E1900A
Standard Package 960
Win Source Part Number 1113083-E19-00A
Ultra Librarian 3D Model Ultra Librarian E19-00A CAD Model

Description

The E Series DPDT Limit Switch with a quick connect termination style of 0.250" (6.3mm) is a high-quality switch that is perfect for use in various applications and is manufactured by ZF Electronics.

  • Termination Style: 0.250" (6.3mm) Quick Connect
  • Operating Force: 850gf
  • Electrical Life: 6,000 Cycles
  • Switch Function: On-Mom
  • Actuator Type: Round (Pin Plunger)
  • Pretravel: 0.050" (1.27mm)
  • Overtravel: 0.079" (2.0mm)
  • Differential Travel: 0.015" (0.38mm)
  • Operating Position: 0.285" (7.24mm)
  • Operating Temperature: -40°C to 105°C
  • Current Rating: 15A (AC)
  • Mounting Type: Chassis Mount
  • Standard Package: 960
