Same model may have multiple batches, images only for reference.

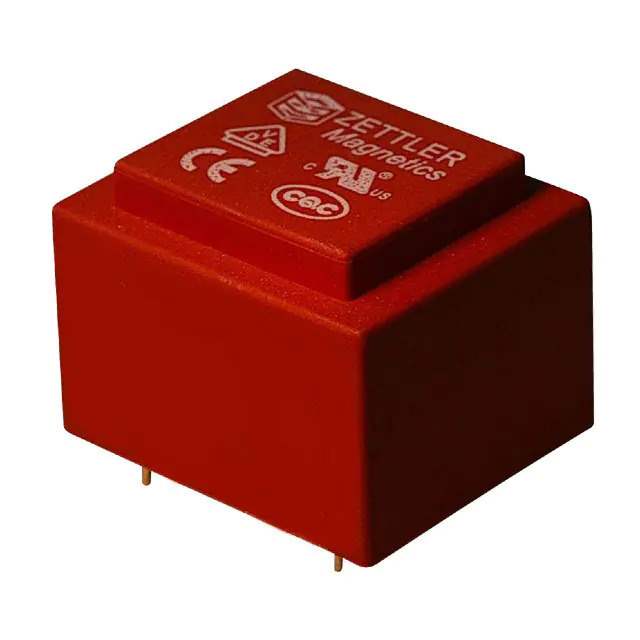

BV301S12006-ZU Real Image
Same model may have multiple batches, images only for reference.

BV301S12006-ZU

Part No BV301S12006-ZU
Manufacturer ZETTLER Electronics
Catalog Power Transformers
Description PWR XFMR LAMINATED 0.6VA TH
Datasheet
BV301S12006-ZU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Power Transformers
Mfr ZETTLER Electronics
Series EI 30-5
Package Box
Product Status Active
Type Laminated Core
Voltage - Primary 115V
Voltage - Secondary (Full Load) 12V
Current - Output (Max) 50mA
Primary Winding(s) Single
Secondary Winding(s) Single
Center Tap No
Power - Max 0.6VA
Mounting Type Through Hole
Termination Style PC Pin
Size / Dimension 32.80mm L x 27.80mm W
Height - Seated (Max) 15.40mm
Voltage - Isolation 4200Vrms
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.4035
Win Source Part Number 913804-BV301S12006-ZU
Ultra Librarian 3D Model Ultra Librarian BV301S12006-ZU CAD Model

Description

The BV301S12006-ZU is a power transformer used in various applications.

  • Category: Transformers - Power Transformers
  • Series: EI 30-5
  • Core: Laminated
  • Terminations: PC Pin
  • Size: 32.80mm L x 27.80mm W
  • Height: 15.40mm (Maximum Seated Height)
  • Power Rating: 0.6VA (Maximum)
  • Isolation Voltage: 4200Vrms
  • Primary Voltage: 115V
  • Output Current: 50mA (Maximum)
  • Secondary Voltage: 12V @ Full Load
  • Primary Windings: Single
  • Secondary Windings: Single
  • Center Tap: None
  • Mounting: Through-Hole
  • Package: Box
  • Manufacturer: ZETTLER Electronics
  • Status: Active
