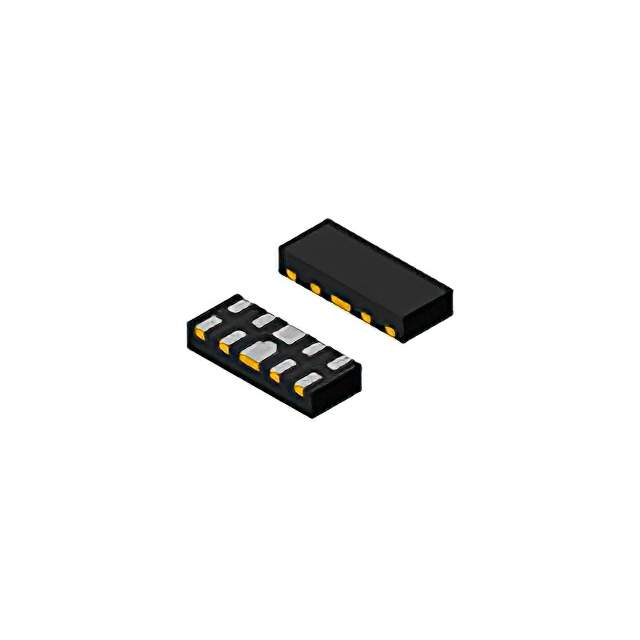

Same model may have multiple batches, images only for reference.

0524P

Name: 0524P
Brand: Yangzhou yangjie electronic co., ltd
SKU: 1380386
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	0524P
Manufacturer	Yangzhou yangjie electronic co., ltd
Catalog	TVS - Diodes
Description	TVS - Diodes DFN2510 5V 4 line / 18V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount DFN2510-10L
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>Transient Voltage Suppressors (TVS)>TVS Diodes
Mfr	Yangzhou yangjie electronic co., ltd
Series	-
Package	Tape & Reel (TR)
Type	Steering (Rail to Rail)
Unidirectional Channels	4
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6.1V
Voltage - Clamping (Max) @ Ipp	18V
Current - Peak Pulse (10/1000µs)	5A (8/20µs)
Power - Peak Pulse	150W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	0.8pF @ 1MHz
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	10-XFDFN
Supplier Device Package	DFN2510-10L
REACH Status	REACH Unaffected
ECCN	EAR99
Standard Package	3,000 pcs
Win Source Part Number	1380386-0524P
Ultra Librarian 3D Model	Ultra Librarian 0524P CAD Model

Alternative Products

Description

The 1380386-0524P is a steering transient voltage suppressor diode designed for circuit protection in electronic devices.

Category: TVS Diodes
Direction: Unidirectional
Channels: 4
Reverse Standoff Voltage (Typ): 5V
Breakdown Voltage (Min): 6.1V
Clamping Voltage (Max) @ Peak Pulse Current: 18V
Peak Pulse Power (10/1000µs): 150W
Capacitance @ Frequency: 0.8pF @ 1MHz
Peak Pulse Current (8/20µs): 5A
Mounting Type: Surface Mount
Package / Case: 10-XFDFN
Operating Temperature: -55°C ~ 150°C (TJ)
Manufacturer: Yangzhou yangjie electronic co., ltd
REACH: Yes
Standard Package: 3,000
