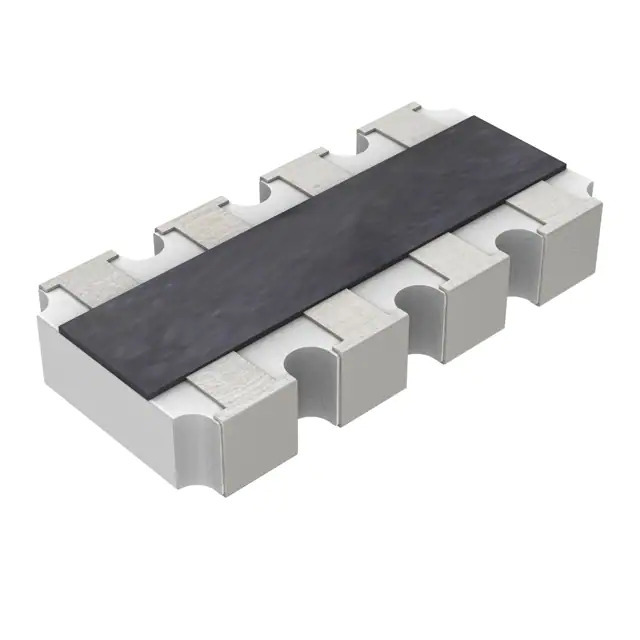

The YAGEO YC164-FR-073KL is a surface mount resistor network with a resistance of 3k ohms. It is part of the YC164 series and is designed for automotive AEC-Q200, DDRAM, and SDRAM applications. The resistor network has a tolerance of ±1% and a temperature coefficient of ±200ppm/°C. It is available in a 1206 (3216 Metric), convex, long side terminals package, with dimensions of 0.126" L x 0.063" W (3.20mm x 1.60mm). The YC164-FR-073KL has 4 resistors in an isolated circuit configuration, with a power rating of 62.5mW per element. It is suitable for various automotive and memory applications.

• Resistance: 3k ohms
• Type: Resistor Network
• Mounting Type: Surface Mount
• Series: YC164
• Applications: Automotive AEC-Q200, DDRAM, SDRAM
• Tolerance: ±1%
• Temperature Coefficient: ±200ppm/°C
• Package: 1206 (3216 Metric), convex, long side terminals, 0.126" L x 0.063" W (3.20mm x 1.60mm)
• Number of Resistors: 4
• Circuit Configuration: Isolated
• Power Rating: 62.5mW per element
