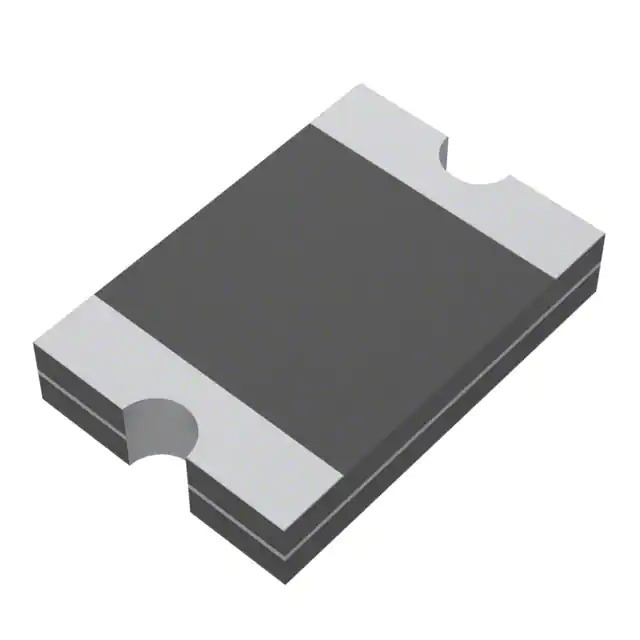

SMD1812B010TF Yageo
Same model may have multiple batches, images only for reference.

SMD1812B010TF

Part No SMD1812B010TF
Manufacturer Yageo
Catalog PTC Resettable Fuses
Description GDT / Polymeric PTC Resettable Fuse 30V 100 mA Ih Surface Mount 1812 (4532 Metric), Concave
Datasheet
SMD1812B010TF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

HTSUS 8533.40.8070
Win Source Part Number 1361624-SMD1812B010TF
ECCN EAR99
MSL Level 1 (Unlimited)
Approval Agency cUL, TUV, UL
Lead Spacing -
Thickness (Max) 0.049" (1.25mm)
Height - Seated (Max) -
Size / Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Package / Case 1812 (4532 Metric), Concave
Mounting Type Surface Mount
Ratings -
Temperature Range - Operating -40°C ~ 85°C
Resistance - Post Trip (R1) (Max) 15 Ohms
Resistance - Initial (Ri) (Min) 1.6 Ohms
Time to Trip 1.5 s
Current - Max 100 A
Current - Trip (It) 300 mA
Current - Hold (Ih) (Max) 100 mA
Voltage - Max 30V
Type Polymeric
Product Status Active
Package Tape & Reel
Series SMD1812
Mfr YAGEO
Category Circuit Protection - PTC Resettable Fuses
Ultra Librarian 3D Model Ultra Librarian SMD1812B010TF CAD Model

Description

The SMD1812B010TF is a polymeric PTC resettable fuse from YAGEO.

  • Description: Circuit Protection
  • Maximum Current Rating: 100A
  • Maximum Voltage Rating: 30V
  • Trip Current: 300mA
  • Time to Trip: 1.5s
  • Mounting Type: Surface Mountable
  • Package: 1812 (4532 Metric), Concave
  • RoHS: Compliant
  • Approvals: cUL, TUV, UL
