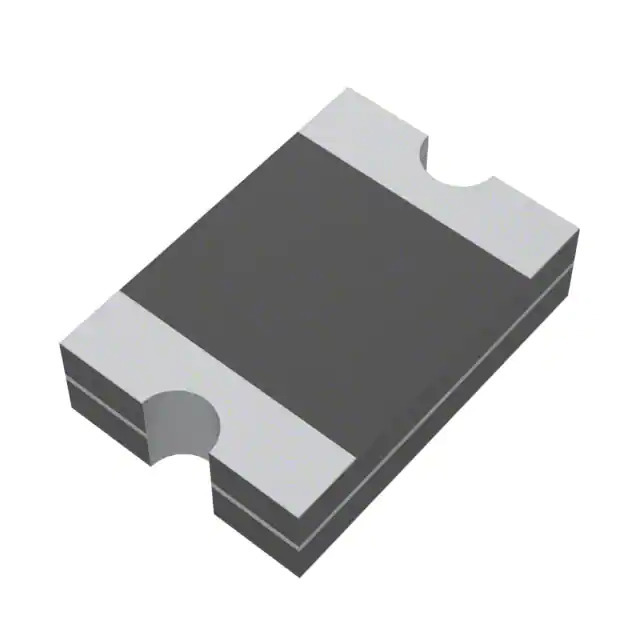

Same model may have multiple batches, images only for reference.

SMD1210B050TF

Name: SMD1210B050TF
Brand: Yageo
SKU: 1361603
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SMD1210B050TF
Manufacturer	Yageo
Catalog	PTC Resettable Fuses
Description	PPTC SMD 1210, 13.2V 0.5A, REEL / Polymeric PTC Resettable Fuse 13.2V 500 mA Ih Surface Mount 1210 (3225 Metric), Concave
Datasheet	SMD1210B050TF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - PTC Resettable Fuses
Mfr	YAGEO
Series	SMD1210
Package	Tape & Reel
Product Status	Active
Type	Polymeric
Voltage - Max	13.2V
Current - Hold (Ih) (Max)	500 mA
Current - Trip (It)	1 A
Current - Max	100 A
Time to Trip	50 ms
Resistance - Initial (Ri) (Min)	250 mOhms
Resistance - Post Trip (R1) (Max)	900 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Ratings	-
Mounting Type	Surface Mount
Package / Case	1210 (3225 Metric), Concave
Size / Dimension	0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max)	-
Thickness (Max)	0.033" (0.85mm)
Lead Spacing	-
Approval Agency	cUL, TUV, UL
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	1361603-SMD1210B050TF
Ultra Librarian 3D Model	Ultra Librarian SMD1210B050TF CAD Model

Description

The 1361603-SMD1210B050TF is a polymeric PTC resettable fuse manufactured by YAGEO. It is part of the SMD1210 series and comes in a tape & reel package.

Temperature Range: -40°C to 85°C
Application: Circuit Protection
Maximum Current Rating: 100 A
Hold Current: 500 mA
Trip Current: 1 A
Time to Trip: 50 ms
Initial Resistance: 250 mOhms
Post-Trip Resistance: 900 mOhms
Package Size: 0.127" L x 0.102" W (3.22mm x 2.58mm)
Thickness: 0.033" (0.85mm) Max
Approvals: cUL, TUV, UL
