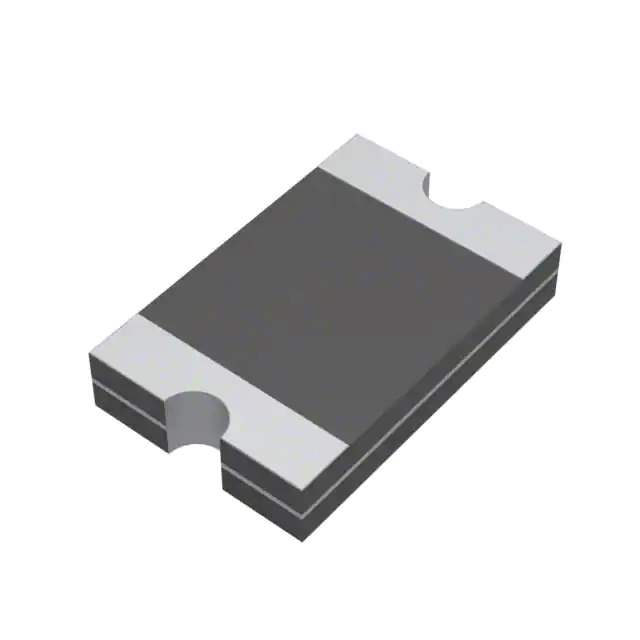

SMD0805B075TF Real Image
Same model may have multiple batches, images only for reference.

SMD0805B075TF

Part No SMD0805B075TF
Manufacturer Yageo
Catalog PTC Resettable Fuses
Description POLYMERIC PTC RESETTABLE FUSE SU
Datasheet
SMD0805B075TF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr YAGEO
Series SMD0805
Package Tape & Reel
Product Status Active
Type Polymeric
Voltage - Max 6V
Current - Hold (Ih) (Max) 750 mA
Current - Trip (It) 1.5 A
Current - Max 40 A
Time to Trip 200 ms
Resistance - Initial (Ri) (Min) 90 mOhms
Resistance - Post Trip (R1) (Max) 350 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric), Concave
Size / Dimension 0.083" L x 0.053" W (2.10mm x 1.35mm)
Thickness (Max) 0.049" (1.25mm)
Approval Agency cUL, TUV, UL
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 934224-SMD0805B075TF
Ultra Librarian 3D Model Ultra Librarian SMD0805B075TF CAD Model

Description

The 934224-SMD0805B075TF is a polymeric PTC resettable fuse from YAGEO's SMD0805 series. It is designed for circuit protection in electronic devices.

  • Maximum Voltage: 6V
  • Maximum Current: 40A
  • Current Hold (Ih): 750mA
  • Current Trip (It): 1.5A
  • Time to Trip: 200ms
  • Package: Tape and Reel
  • Size: 0.083" L x 0.053" W (2.10mm x 1.35mm)
  • Thickness: 0.049" (1.25mm)
  • Mounting: Surface Mountable
  • Operating Temperature: -40°C to 85°C
  • Initial Resistance: 90mOhms
  • Post-Trip Resistance: 350mOhms
  • Approvals: cUL, TUV, and UL
  • Manufacturer: YAGEO
