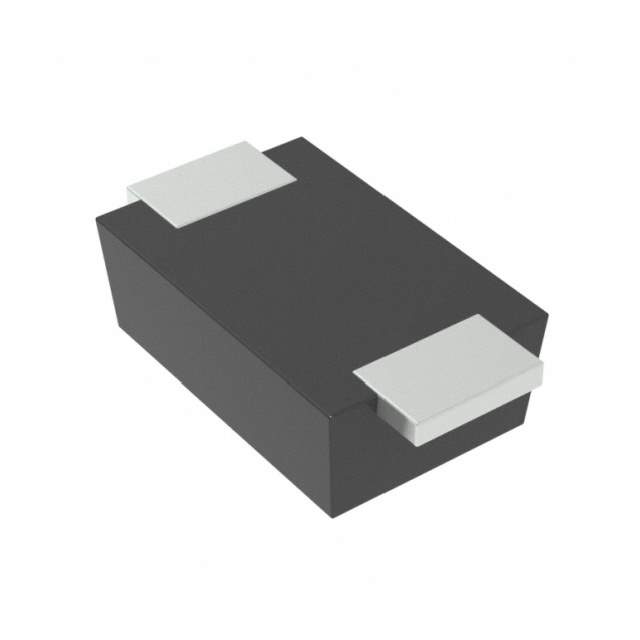

Same model may have multiple batches, images only for reference.

SJD12C60L01

Name: SJD12C60L01
Brand: Yageo
SKU: 1334997
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SJD12C60L01
Manufacturer	Yageo
Catalog	TVS - Diodes
Description	TVS ESD, SOD-123S, 60V, 96.8V, R / 96.8V Clamp 2.1A Ipp Tvs Diode Surface Mount SOD-123S
Datasheet	SJD12C60L01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Manufacturer	Yageo
Packaging	Reel - TR
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	60V
Voltage - Breakdown (Min)	66.7V
Voltage - Clamping (Max) @ Ipp	96.8V
Current - Peak Pulse (10/1000µs)	2.1A
Power - Peak Pulse	200W
Power Line Protection	No
Applications	General Purpose
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	Surface Mount
Case / Package	DO-219AA
Supplier Device Package	SOD-123S
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Other Part Number	13-SJD12C60L01TR
Standard Package	3,000
Win Source Part Number	1334997-SJD12C60L01
Ultra Librarian 3D Model	Ultra Librarian SJD12C60L01 CAD Model

Alternative Products

Description

The SJD12C60L01 is a unidirectional, surface mount TVS diode with a 60V reverse standoff voltage and 200W peak pulse power.

Designed for: use in general purpose applications
Package: SOD-123S
Popularity: high
MSL Level: unlimited
Operating Temperature Range: -55°C to 150°C (TJ)
