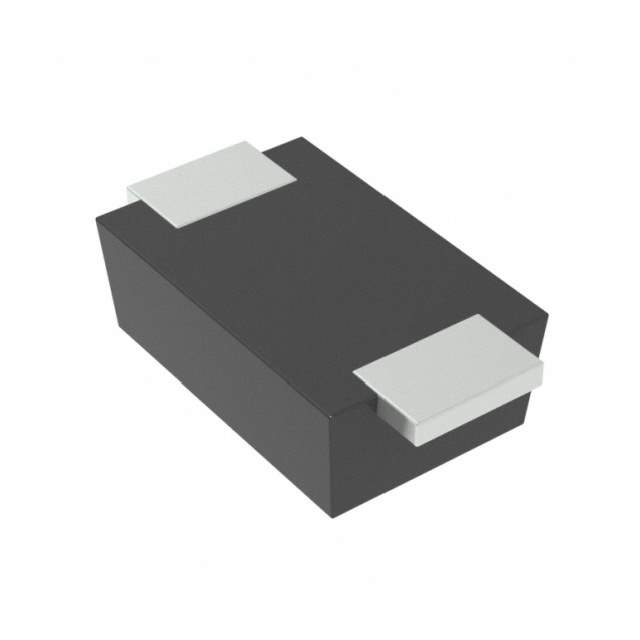

SJD12C20L01

Name: SJD12C20L01
Brand: Yageo
SKU: 960058
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SJD12C20L01
Manufacturer	Yageo
Catalog	TVS - Diodes
Description	TVS ESD, SOD-123S, 20V, 32.4V, R / 32.4V Clamp 6.2A Ipp Tvs Diode Surface Mount SOD-123S
Datasheet	SJD12C20L01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	YAGEO
Series	SJD12A(C)XXXL01
Package	Tape & Reel (TR)
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	20V
Voltage - Breakdown (Min)	22.2V
Voltage - Clamping (Max) @ Ipp	32.4V
Current - Peak Pulse (10/1000µs)	6.2A
Power - Peak Pulse	200W
Power Line Protection	No
Applications	General Purpose
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Package / Case	DO-219AA
Supplier Device Package	SOD-123S
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	13-SJD12C20L01TR
Standard Package	3,000
Win Source Part Number	960058-SJD12C20L01
Ultra Librarian 3D Model	Ultra Librarian SJD12C20L01 CAD Model

Alternative Products

Description

The electronic component with a Win Source Part Number of 960058-SJD12C20L01 is a Circuit Protection>TVS - Diodes type.

Type: zener
Voltage - Breakdown (Min): 22.2V
Voltage - Clamping (Max) @ Ipp: 32.4V
Power - Peak Pulse: 200W
Current - Peak Pulse (10/1000µs): 6.2A
Packaging: Tape & Reel (TR)
Standard Package: 3,000 Pieces
