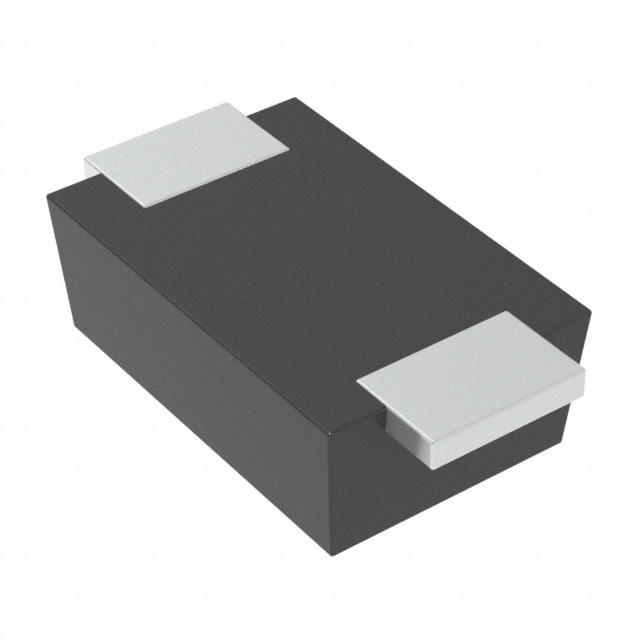

SJD12A45L01 Yageo
Same model may have multiple batches, images only for reference.

SJD12A45L01

Part No SJD12A45L01
Manufacturer Yageo
Catalog TVS - Diodes
Description TVS ARRAY ESD, SOD-123, 45V 72.7 / 72.7V Clamp 2.8A Ipp Tvs Diode Surface Mount SOD-123S
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr YAGEO
Series SJD12A45L01
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 45V
Voltage - Breakdown (Min) 50V
Voltage - Clamping (Max) @ Ipp 72.7V
Current - Peak Pulse (10/1000µs) 2.8A
Power - Peak Pulse 1000W (1kW)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency -
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-219AA
Supplier Device Package SOD-123S
Base Product Number SJD12A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1362301-SJD12A45L01
Ultra Librarian 3D Model Ultra Librarian SJD12A45L01 CAD Model

Description

The SJD12A45L01 is a TVS diode designed for circuit protection against transient voltage surges.

  • Series: SJD12A45L01
  • Manufacturer: YAGEO
  • Type: Unidirectional
  • Reverse Standoff Voltage: 45V
  • Breakdown Voltage: 50V
  • Clamping Voltage: 72.7V @ 2.8A peak pulse current
  • Power Rating: 1000W (1kW)
  • Application: General-Purpose
  • Packaging: Tape and Reel
  • Mounting: Surface Mount
  • REACH: Compliant
  • ECCN: EAR99
  • Features: reliable and efficient.
