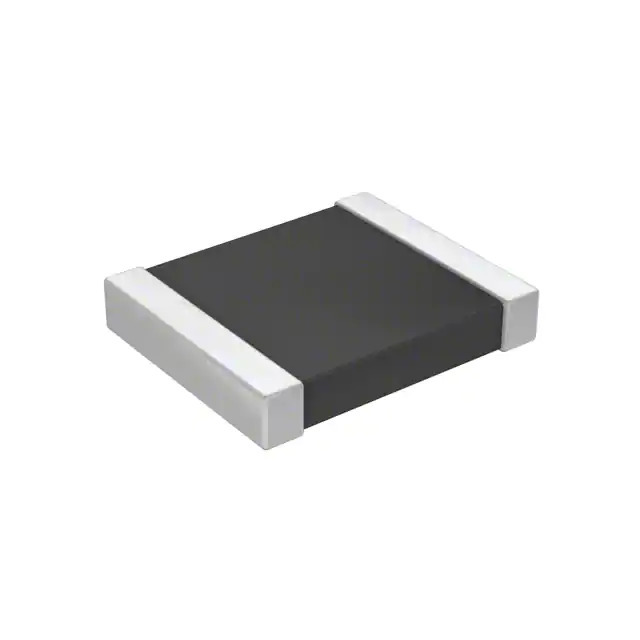

Same model may have multiple batches, images only for reference.
RL1210FR-070R24L Yageo
Same model may have multiple batches, images only for reference.

RL1210FR-070R24L

Part No RL1210FR-070R24L
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES 0.24 OHM 1% 1/2W 1210
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr YAGEO
Series RL
Package Tape & Reel
Product Status Active
Resistance 240 mOhms
Tolerance ±1%
Power (Watts) 0.5W, 1/2W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±600ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1210 (3225 Metric)
Supplier Device Package 1210
Ratings AEC-Q200
Size / Dimension 0.122" L x 0.102" W (3.10mm x 2.60mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375306-RL1210FR-070R24L
Ultra Librarian 3D Model Ultra Librarian RL1210FR-070R24L CAD Model

Description

The RL1210FR-070R24L is a chip resistor in a surface mount package. It is part of the RL series from YAGEO and is suitable for a wide range of applications including automotive AEC-Q200, current sense, and moisture resistance.

  • Package Size: 1210 (3225 metric)
  • Size: 0.122" length x 0.102" width
  • Height (Seated): 0.026"
  • Resistance: 240 milliohms
  • Power Rating: 0.5W
  • Tolerance: ±1%
  • Temperature Coefficient: ±600ppm/°C
  • Package: Tape and Reel
