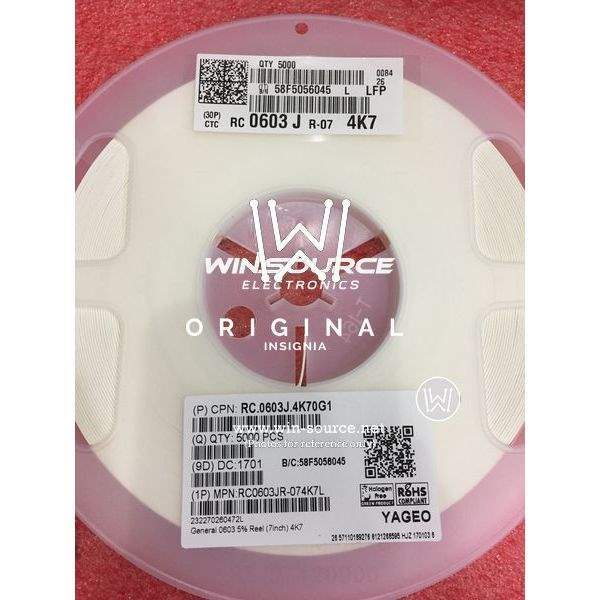

RC0603JR-074K7L Yageo RC0603JR-074K7L Real Image RC0603JR-074K7L label picture 2
Same model may have multiple batches, images only for reference.
RC0603JR-074K7L Yageo RC0603JR-074K7L Real Image RC0603JR-074K7L label picture 2
RC0603JR-074K7L Yageo RC0603JR-074K7L Real Image RC0603JR-074K7L label picture 2
Same model may have multiple batches, images only for reference.

RC0603JR-074K7L

Part No RC0603JR-074K7L
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description Res Thick Film 0603 4.7K Ohm 5% 0.1W(1/10W) ±100ppm/°C Pad SMD T/R / RES SMD 4.7K OHM 5% 1/10W 0603
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Yageo
Packaging Reel - TR
Status Active
Resistance (Ohms) 4.7k
Tolerance ±5%
Power (Watts) 0.1W, 1/10W
Composition Thick Film
Features Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C to 155°C
Case / Package 0603
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
Win Source Part Number 110698-RC0603JR-074K7L
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name RC_L
Introduction Date February 03, 2016
ECCN EAR99
Country of Origin China, Taiwan
Halogen Free Compliant
Estimated EOL Date 2033
Ultra Librarian 3D Model Ultra Librarian RC0603JR-074K7L CAD Model

Description

The RC0603JR-074K7L is a thick film resistor manufactured by Yageo.

  • Resistance: 4.7k ohms
  • Tolerance: ±5%
  • Power Rating: 0.1W
  • Package: 0603 case
  • Market Popularity: High
  • Moisture Resistant: Yes
  • Temperature Coefficient: ±100ppm/°C
  • Halogen-Free: Compliant
  • Estimated EOL Date: 2033
  • Package Type: Reel
  • Supply and Demand Status: Balanced
