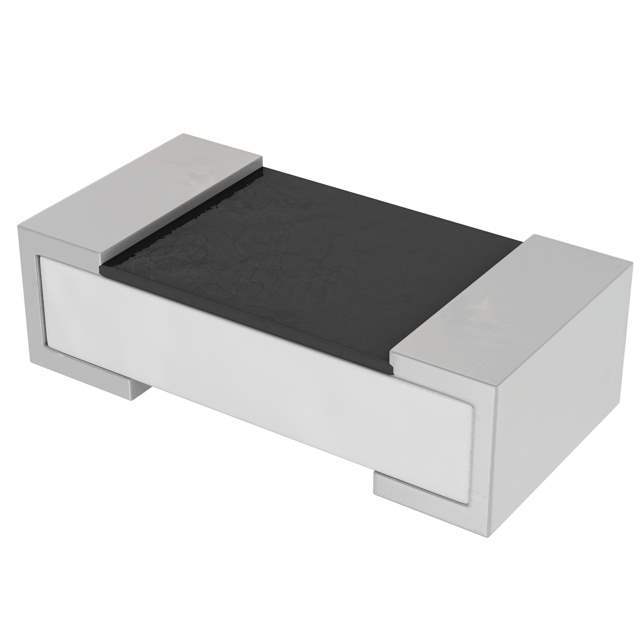

Same model may have multiple batches, images only for reference.

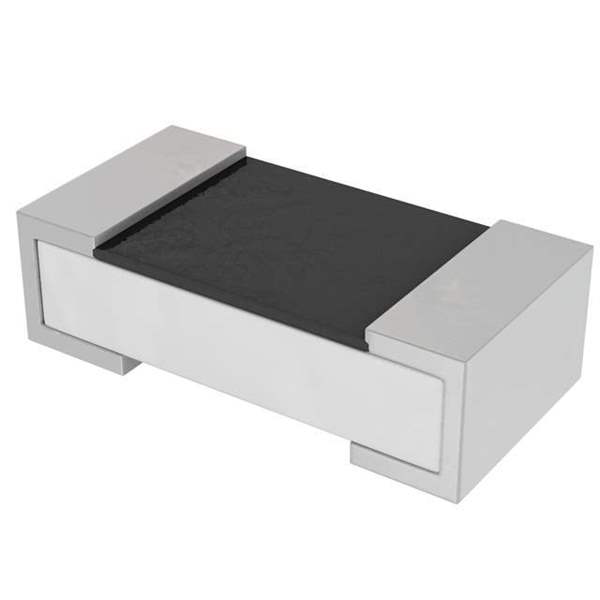

RC0100FR-07240RL YAGEO
Same model may have multiple batches, images only for reference.

RC0100FR-07240RL

Part No RC0100FR-07240RL
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES 240 OHM 1% 1/32W 01005
Datasheet
RC0100FR-07240RL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer YAGEO
Category Resistors > Chip Resistor - Surface Mount
Part Status Active
Resistance 240 Ohms
Tolerance ±1%
Composition Thick Film
Temperature Coefficient ±200ppm/°C
Operating Temperature -55°C ~ 125°C
Size / Dimension 0.016" L x 0.008" W (0.40mm x 0.20mm)
Height - Seated (Max) 0.006" (0.15mm)
Ultra Librarian 3D Model Ultra Librarian RC0100FR-07240RL CAD Model

Description

FEATURES

• Halogen Free Epoxy

• RoHS compliant

   • Products with lead free terminations meet RoHS requirements

   • Pb-glass contained in electrodes, resistors element and glass are exempted by RoHS

• Reducing environmentally hazardous wastes

• High component and equipment reliability

• Saving of PCB space

• None forbidden-materials used in products/production

• MSL class: MSL 1
