Same model may have multiple batches, images only for reference.

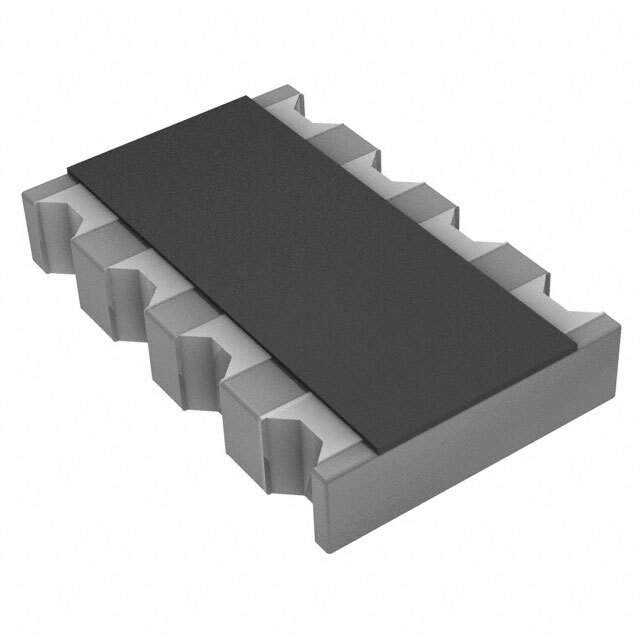

742C083220JP Real Image
Same model may have multiple batches, images only for reference.

742C083220JP

Part No 742C083220JP
Manufacturer CTS Resistor Products
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES 22 OHM 1206
Datasheet
742C083220JP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 857189-742C083220JP
Supply and Demand Status Limited
Popularity Medium
Quantity per package 5000
Other Part Number 742C083220JPCT, 742C083220JPTR, 742C083220JPDKR
HTSUS 8533.21.0020
ECCN EAR99
REACH Status REACH Unaffected
MSL Level 1 (Unlimited)
Package 1206 (3216 Metric), Concave, Long Side Terminals
Mounting Surface Mount
Operating Temperature Range -55°C ~ 125°C
Package Reel - TR
Series 742
Manufacturer CTS Resistor Products
Features 22 Ohm ±5% 62.5mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 1206 (3216 Metric), Concave, Long Side Terminals
Estimated Pruduction Lead Time 28 Weeks
Categories Resistors
Ultra Librarian 3D Model Ultra Librarian 742C083220JP CAD Model

Description

The CTS Resistor Products 742 series resistor network/array is a 4-resistor network with 22 Ohm resistance and ±5% tolerance.

  • Package: 1206 (3216 Metric), Concave, Long Side Terminals
  • Mounting: Surface Mounting
  • Operating Temperature: -55°C to 125°C
  • Power Rating: 62.5mW per element
  • Isolation: Isolated
  • Temperature Coefficient: ±200ppm/°C
  • Package Type: Reel - TR
  • Quantity per Package: 5000
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 28 weeks
  • REACH: Unaffected
  • ECCN: EAR99
  • Category: Resistor
