Same model may have multiple batches, images only for reference.

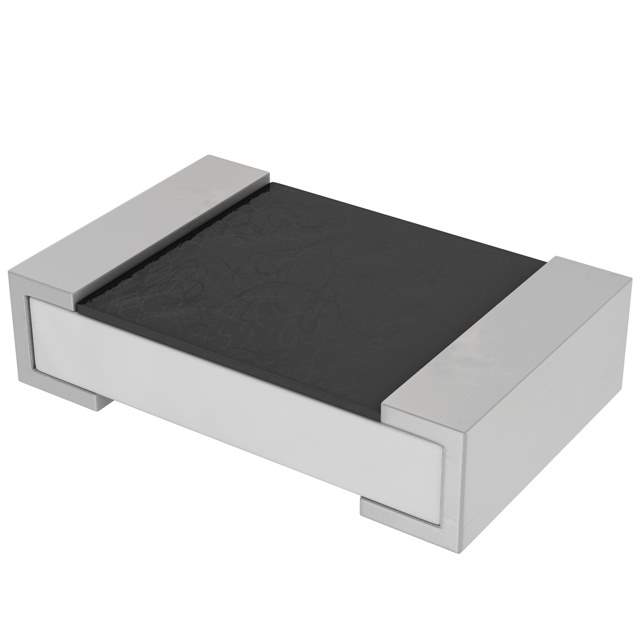

PT0805FR-7W0R1L Real Image
Same model may have multiple batches, images only for reference.

PT0805FR-7W0R1L

Part No PT0805FR-7W0R1L
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES 0.1 OHM 1% 1/4W 0805
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 19 Weeks
Features 100 mOhms ±1% 0.25W, 1/4W Chip Resistor 0805 (2012 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant Thick Film
Manufacturer Yageo
Series PT
Package Reel - TR
Operating Temperature Range -55°C ~ 155°C
Package 0805 (2012 Metric)
Case / Package 0805
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number 311-0.1AMCT, 311-0.1AMTR, PT0805FR7W0R1L, 311-0.1AMDKR
Quantity per package 5000
Popularity High
Supply and Demand Status Limited
Win Source Part Number 890327-PT0805FR-7W0R1L
Ultra Librarian 3D Model Ultra Librarian PT0805FR-7W0R1L CAD Model

Description

The PT0805FR-7W0R1L is a chip resistor with a surface mount type.

  • Mounting Type: Surface Mount
  • Manufacturer: Yageo
  • Win Source Part Number: 890327-PT0805FR-7W0R1L
  • Power Rating: 0.25W (1/4W)
  • Resistance: 0.1 Ohms
  • Package/Case: 0805 (2012 Metric)
  • Feature: Moisture-resistant
  • Application: Automotive AEC-Q200 current sense
  • Popularity: High
  • Supply and Demand: Limited
  • Production Lead Time: 19 weeks
