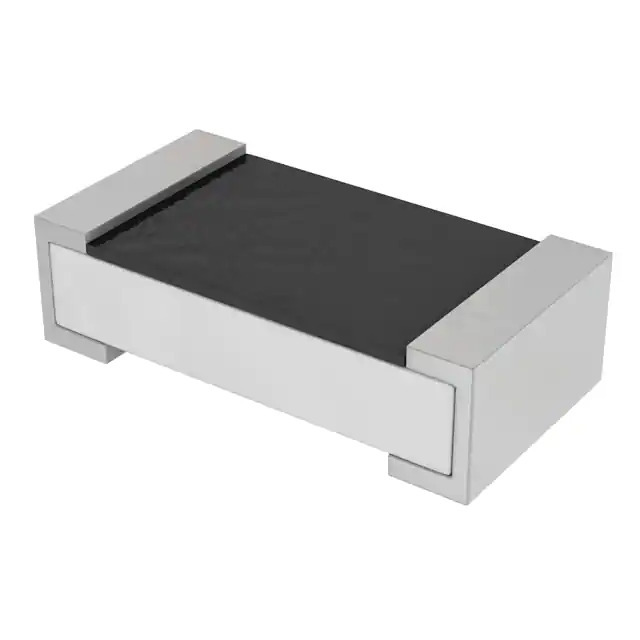

PT0402FR-7W0R1L Yageo
Same model may have multiple batches, images only for reference.

PT0402FR-7W0R1L

Part No PT0402FR-7W0R1L
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES 0.1 OHM 1% 1/8W 0402
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr YAGEO
Series PT
Package Tape & Reel
Product Status Active
Resistance 100 MOhms
Tolerance ±1%
Power (Watts) 0.125W, 1/8W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Ratings AEC-Q200
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.016" (0.40mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375119-PT0402FR-7W0R1L
Ultra Librarian 3D Model Ultra Librarian PT0402FR-7W0R1L CAD Model

Description

The YAGEO 1375119-PT0402FR-7W0R1L is a chip resistor designed for surface mount applications.

  • Series: PT
  • Package/Case: 0402
  • Resistance: 100 MOhms
  • Tolerance: ±1%
  • Power Rating: 0.125W or 1/8W
  • Temperature Coefficient: ±200ppm/°C
  • Operating Temperature: -55°C to 155°C
  • Compliance: Automotive AEC-Q200 compliant, moisture resistant
  • Applications: Current sensing applications
  • Size: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Height: 0.016" (0.40mm)
  • Packaging: Tape and reel
  • REACH: Unaffected
  • ECCN: EAR99
