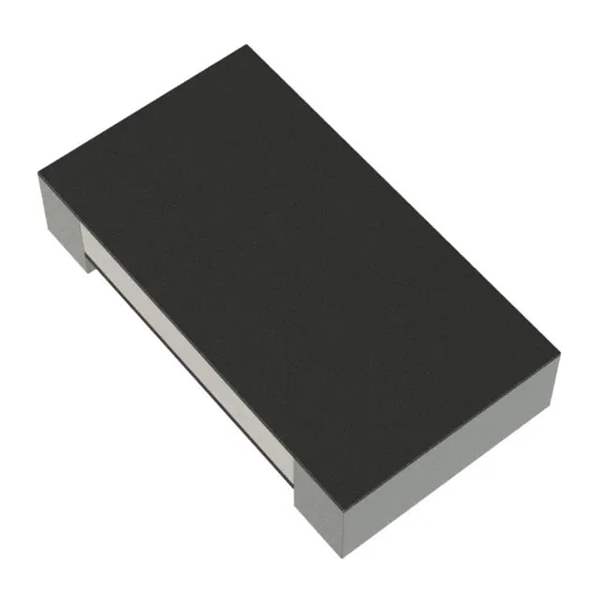

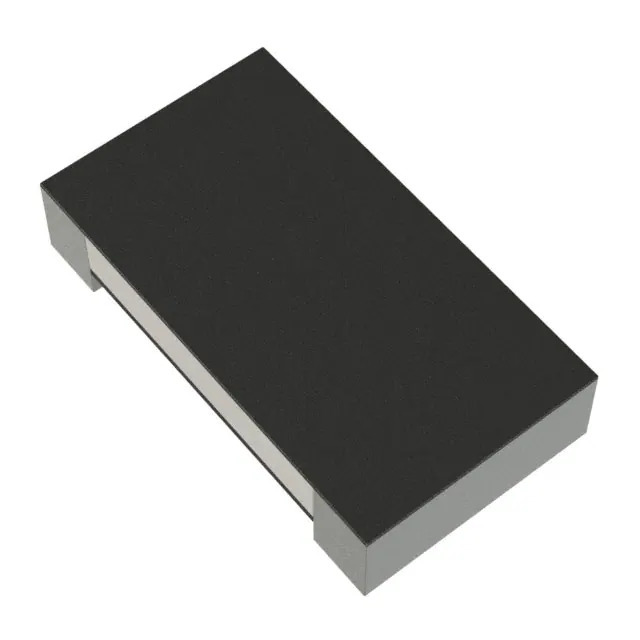

PE0805FRM470R1L Yageo
Same model may have multiple batches, images only for reference.

PE0805FRM470R1L

Part No PE0805FRM470R1L
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES 0.1 OHM 1% 1/2W 0805
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr YAGEO
Series PE
Package Tape & Reel
Product Status Active
Resistance 100 MOhms
Tolerance ±1%
Power (Watts) 0.5W, 1/2W
Composition Metal Film
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -55°C ~ 170°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Ratings AEC-Q200
Size / Dimension 0.080" L x 0.050" W (2.03mm x 1.27mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375346-PE0805FRM470R1L
Ultra Librarian 3D Model Ultra Librarian PE0805FRM470R1L CAD Model

Description

The 1375346-PE0805FRM470R1L is a chip resistor from YAGEO's PE series.

  • Manufacturer: YAGEO
  • Series: PE
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel
  • Temperature Range: -55°C ~ 170°C
  • Resistance: 100 MOhms
  • Power Rating: 0.5W
  • Tolerance: ±1%
  • Temperature Coefficient: ±75ppm/°C
  • Product Status: Active
  • Package / Case: 0805 (2012 Metric)
  • HTSUS: 8533.21.0030
  • ECCN: EAR99
  • AEC-Q200: Yes
  • Moisture Resistance: Yes
