Same model may have multiple batches, images only for reference.

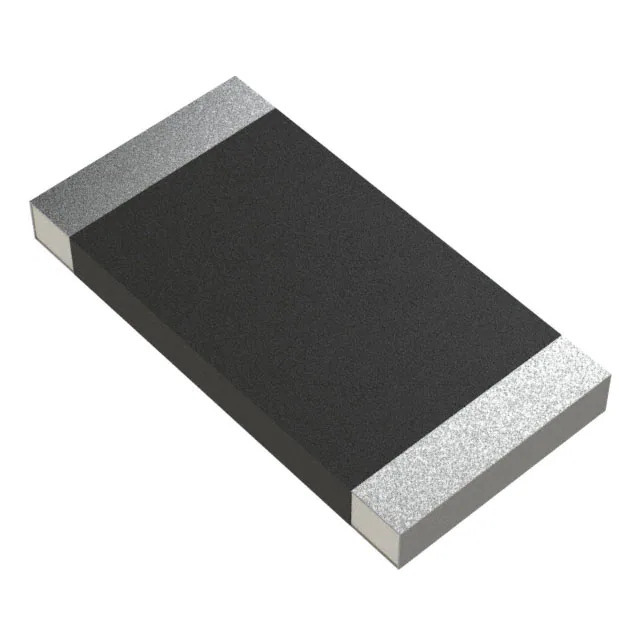

PA2512FKE7W0R005E Yageo
Same model may have multiple batches, images only for reference.

PA2512FKE7W0R005E

Part No PA2512FKE7W0R005E
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES 0.005 OHM 1% 2W 2512
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr YAGEO
Series PA_E
Package Tape & Reel
Product Status Active
Resistance 5 mOhms
Tolerance ±1%
Power (Watts) 2W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 170°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Ratings AEC-Q200
Size / Dimension 0.250" L x 0.125" W (6.35mm x 3.18mm)
Height - Seated (Max) 0.035" (0.88mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375363-PA2512FKE7W0R005E
Ultra Librarian 3D Model Ultra Librarian PA2512FKE7W0R005E CAD Model

Description

The YAGEO 1375363-PA2512FKE7W0R005E is a chip resistor designed for surface mount applications.

  • Series: PA_E
  • AEC-Q200: Automotive
  • Resistance: 5 mOhms
  • Tolerance: ±1%
  • Operating Temperature: -55°C to 170°C
  • Power Rating: 2W
  • Element: Metal
  • Package: 2512
