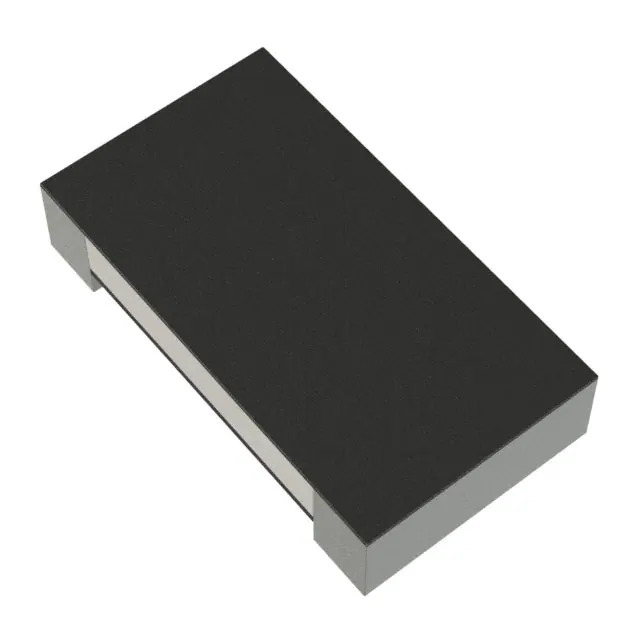

Same model may have multiple batches, images only for reference.

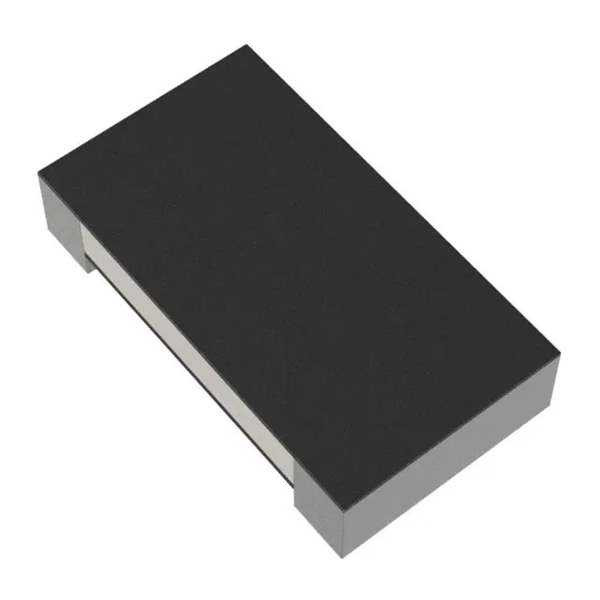

PA0805FRE470R002L Yageo
Same model may have multiple batches, images only for reference.

PA0805FRE470R002L

Part No PA0805FRE470R002L
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES 0.002 OHM 1% 1/2W 0805
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr YAGEO
Series PA
Package Tape & Reel
Product Status Active
Resistance 2 MOhms
Tolerance ±1%
Power (Watts) 0.5W, 1/2W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Ratings AEC-Q200
Size / Dimension 0.080" L x 0.050" W (2.03mm x 1.27mm)
Height - Seated (Max) 0.024" (0.60mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375129-PA0805FRE470R002L
Ultra Librarian 3D Model Ultra Librarian PA0805FRE470R002L CAD Model

Description

The 1375129-PA0805FRE470R002L is a chip resistor designed for surface mount applications. 1375129-PA0805FRE470R002L is from YAGEO.

  • Series: PA
  • Package: 0805
  • Resistance: 2 MOhms
  • Power Rating: 0.5W
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Rating: AEC-Q200
  • Feature: Moisture resistant
  • Packaging: Tape and reel
  • Size: 0.080" L x 0.050" W (2.03mm x 1.27mm)
  • Height: 0.024" (0.60mm)
