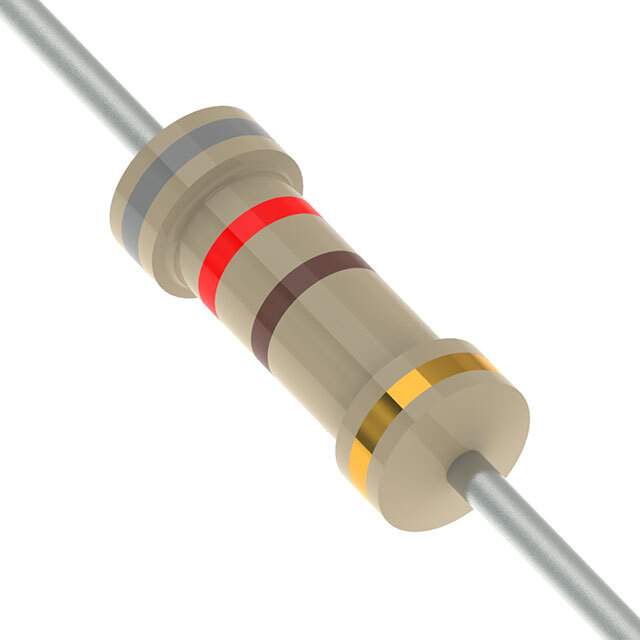

Same model may have multiple batches, images only for reference.

CFR-50JB-52-820R

Name: CFR-50JB-52-820R
Brand: Yageo
SKU: 1325903
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CFR-50JB-52-820R
Manufacturer	Yageo
Catalog	Through Hole Resistors
Description	RES 820 OHM 5% 1/2W AXIAL / 820 Ohms ±5% 0.5W, 1/2W Through Hole Resistor Axial Carbon Film
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Through Hole Resistors
Manufacturer	Yageo
Packaging	Bulk
Resistance	820 Ohms
Tolerance	±5%
Power (Watts)	0.5W, 1/2W
Composition	Carbon Film
Temperature Coefficient	-500/ +350ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Case / Package	Axial
Supplier Device Package	Axial
Size / Dimension	0.130" Dia x 0.354" L (3.30mm x 9.00mm)
Number of Terminations	2
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.10.0065
Other Part Number	CFR-50JB 820R,CFR-50JB-820R,CR-50-B-820,820H,CFR-50JB-52820R,820E CR-1/2W-B 5%,CFR50JB52820R
Standard Package	5,000
Win Source Part Number	1325903-CFR-50JB-52-820R
Ultra Librarian 3D Model	Ultra Librarian CFR-50JB-52-820R CAD Model

Alternative Products

Description

The Yageo 1325903-CFR-50JB-52-820R is a through-hole resistor that has a resistance of 820 Ohms and a tolerance of ±5%.

Resistance: 820 Ohms
Tolerance: ±5%
Composition: Carbon film
Power Rating: 0.5W or 1/2W
Temperature Coefficient: -500/ +350ppm/°C
Operating Temperature Range: -55°C to 155°C
Packaging: Bulk
Supplier Device Package: Axial
