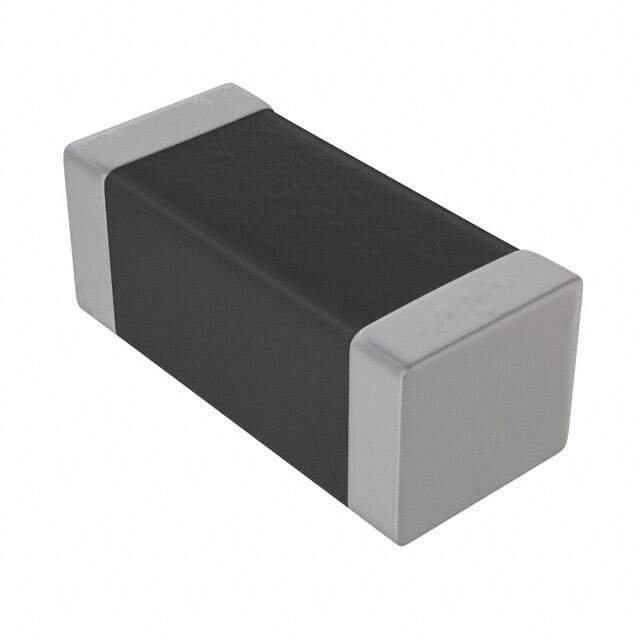

CC1808KKX7REBB681 Real Image
Same model may have multiple batches, images only for reference.

CC1808KKX7REBB681

Part No CC1808KKX7REBB681
Manufacturer Yageo
Catalog Ceramic Capacitors
Description CAP CER 680PF 3KV X7R 1808 / 680 pF ±10% 3000V (3kV) Ceramic Capacitor X7R 1808 (4520 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr YAGEO
Series CC
Package Tape & Reel (TR)
Capacitance 680 pF
Tolerance ±10%
Voltage - Rated 3000V (3kV)
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 1808 (4520 Metric)
Dimension 0.177" L x 0.079" W (4.50mm x 2.00mm)
Thickness (Max) 0.071" (1.80mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Standard Package 2,000
Win Source Part Number 1164472-CC1808KKX7REBB681
Ultra Librarian 3D Model Ultra Librarian CC1808KKX7REBB681 CAD Model

Description

The CC1808KKX7REBB681 is a high-voltage ceramic capacitor manufactured by YAGEO.

  • Applications: Suitable for use in electronic devices
  • Standard Package: 2,000
  • Capacitance: 680 pF
  • Tolerance: ±10%
  • Voltage Rating: 3000V (3kV)
  • Temperature Coefficient: X7R
  • Package: Tape and reel (TR)
  • Temperature Range: -55°C to 125°C
