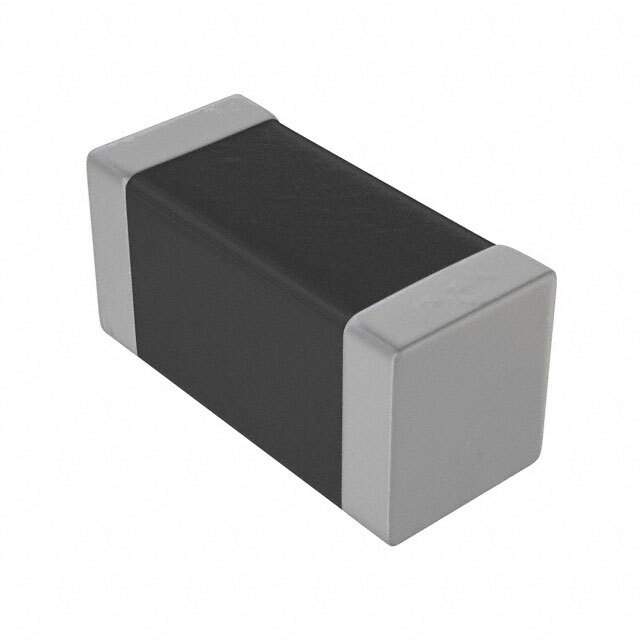

CC1808KKX7RDBB102 Real Image1 CC1808KKX7RDBB102 Real Image2
Same model may have multiple batches, images only for reference.
CC1808KKX7RDBB102 Real Image1 CC1808KKX7RDBB102 Real Image2
CC1808KKX7RDBB102 Real Image1 CC1808KKX7RDBB102 Real Image2
Same model may have multiple batches, images only for reference.

CC1808KKX7RDBB102

Part No CC1808KKX7RDBB102
Manufacturer Yageo
Catalog Ceramic Capacitors
Description CAP CER 1000PF 2KV X7R 1808 / Cap Ceramic 0.001uF 2000V X7R 10% Pad SMD 1808 125°C T/R
Datasheet
CC1808KKX7RDBB102 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Yageo
Series CC
Packaging Reel package
Capacitance 1000pF
Tolerance ±10%
Voltage Rating DC 2000V (2kV)
Temperature Coefficient X7R
Operating Temperature Range -55°C ~ 125°C
Features High Voltage
Applications General
Mounting Surface Mount, MLCC
Package 1808 (4520 Metric)
Dimension 0.177" L x 0.079" W (4.50mm x 2.00mm)
Thickness (Maximum) 0.087" (2.20mm)
Win Source Part Number 770852-CC1808KKX7RDBB102
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Family Name 1808
Introduction Date September 08, 2005
ECCN EAR99
Country of Origin China, Taiwan
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian CC1808KKX7RDBB102 CAD Model

Description

The CC1808KKX7RDBB102 is a high-voltage, surface mount, MLCC capacitor from Yageo.

  • Capacitance: 1000pF
  • Tolerance: ±10%
  • Series: CC
  • Operating Temperature Range: -55°C to 125°C
  • Voltage Rating DC: 2000V (2kV)
  • Package: Reel
  • Thickness: 0.087" (2.20mm)
  • Alternative Parts: 1808GC102KAT2A, 1808GC102KATME, 1808GC102KAT3A, 1808GC102KATBE
  • ECCN: EAR99
  • HTSUS Code: 8532.22.0040
