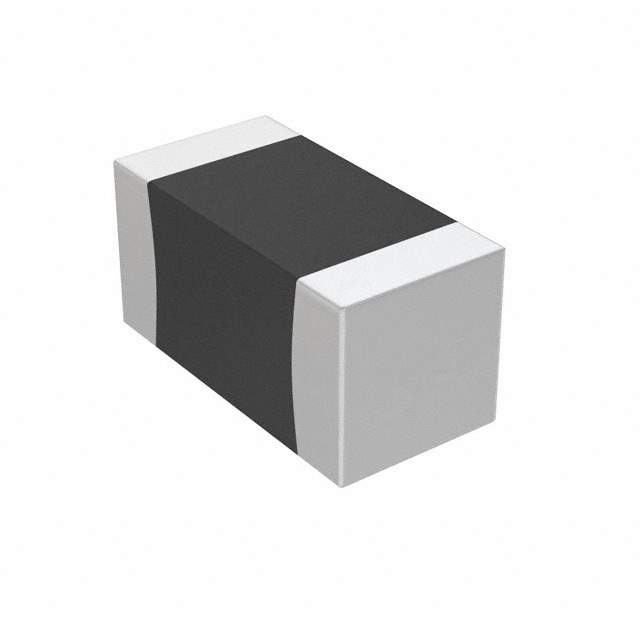

The CC0402MRX5R4BB106 is a multilayer ceramic capacitor (MLCC) manufactured by Yageo. It belongs to the CC series of general-purpose capacitors, known for their reliability and stable performance in a wide range of applications. This specific capacitor has a compact 0402 case size, making it suitable for densely populated circuit boards.

Applications

• Bypass Capacitors: Used to bypass noise and ripple in power supply circuits.
• Decoupling Capacitors: Employed to decouple ICs and other components from power supply noise.
• Filtering: Applied in filtering circuits to remove unwanted frequencies.
• Timing Circuits: Utilized in timing circuits to control the timing of events.
• General-Purpose Circuits: Used in various general-purpose electronic circuits.

Features

• Small Size: 0402 case size for high-density mounting.
• X5R Dielectric: Offers stable capacitance over temperature.
• Multilayer Construction: Provides high capacitance in a small volume.
• RoHS Compliant: Complies with Restriction of Hazardous Substances directive.
• Surface Mount Technology (SMT): Designed for automated assembly.
• High Reliability: Ensures long-term performance and stability.

Benefits

• Space Saving: Small size allows for compact circuit designs.
• Stable Performance: X5R dielectric ensures reliable operation over a wide temperature range.
• Easy Assembly: SMT design facilitates automated assembly processes.
• Environmentally Friendly: RoHS compliance reduces environmental impact.
• Versatile Application: Suitable for a wide range of electronic applications.

Additional Details

The CC0402MRX5R4BB106 has a capacitance of 10µF (microfarads) with a tolerance usually around ±20%. It has a rated voltage of 4V. The operating temperature range is typically -55°C to +85°C. The X5R dielectric ensures that the capacitance changes by no more than ±15% over this temperature range. This capacitor is commonly used in mobile phones, tablets, and other portable electronic devices due to its small size and stable performance. Proper soldering techniques and handling procedures are crucial for reliable performance. It is available in tape and reel packaging for automated placement.
