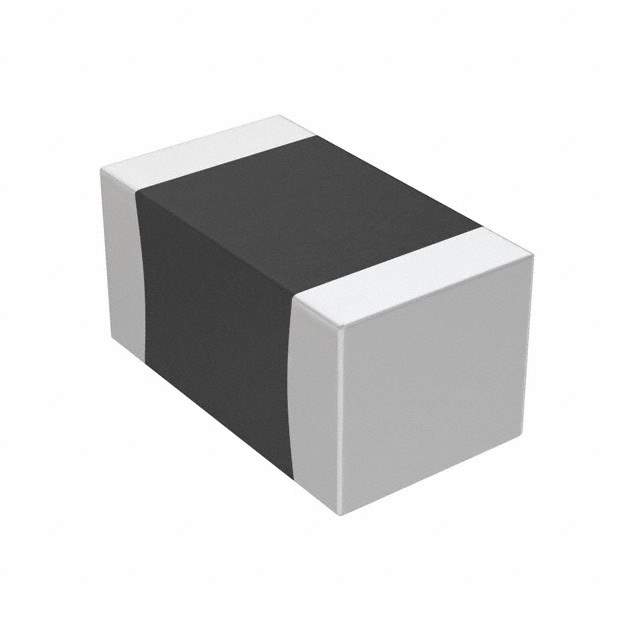

The C0603KPX7R9BB183 is a multilayer ceramic capacitor (MLCC) manufactured by Yageo. It belongs to the X7R dielectric family and comes in a 0603 case size. It is designed for general-purpose applications requiring stable capacitance over a range of temperatures and voltages.

Applications

• Bypass Capacitors
• Decoupling Capacitors
• Filtering Circuits
• Snubber Circuits
• Timing Circuits

Features

• X7R Dielectric: Provides stable capacitance over temperature.
• 0603 Case Size: Small size for high-density mounting.
• Multilayer Ceramic Construction: Offers high capacitance in a small package.
• RoHS Compliant: Environmentally friendly.
• Surface Mount Technology (SMT): Suitable for automated assembly.

Benefits

• Stable Performance: The X7R dielectric ensures minimal capacitance change over a wide temperature range.
• Compact Size: The small 0603 package allows for high-density circuit designs.
• Reliable Operation: The multilayer ceramic construction provides high reliability and long life.
• Easy Assembly: SMT design simplifies the assembly process.
• Environmentally Compliant: RoHS compliance ensures environmental responsibility.

Additional Details

The C0603KPX7R9BB183 has a capacitance value of 18nF (183 indicates 18 x 10^3 pF). The voltage rating can typically be 16V, 25V, or 50V; the specific voltage rating should be verified with the manufacturer's datasheet. X7R capacitors exhibit a capacitance change of ±15% over the temperature range of -55°C to +125°C. The termination is typically nickel barrier with tin plating for good solderability. It is crucial to consult the Yageo datasheet for complete specifications, including voltage rating, tolerance, and temperature coefficient.
