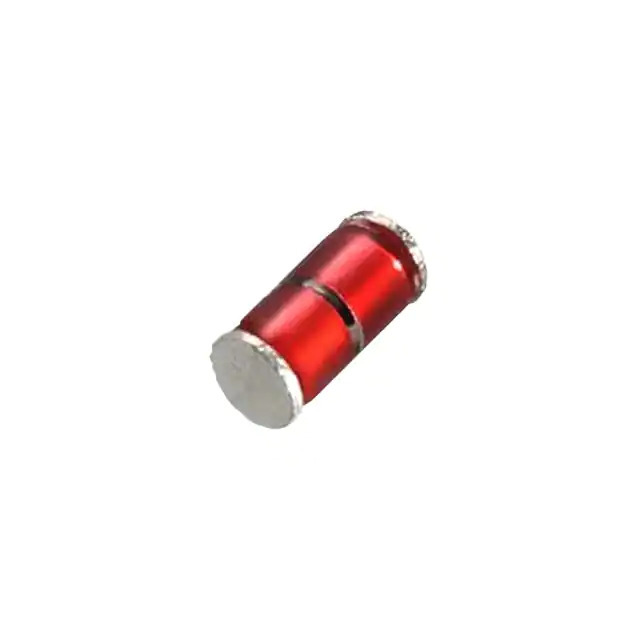

Same model may have multiple batches, images only for reference.
BK12005002-M Yageo
Same model may have multiple batches, images only for reference.

BK12005002-M

Part No BK12005002-M
Manufacturer Yageo
Catalog Gas Discharge Tube Arresters (GDT)
Description GDT 1000V 3KA 1 POLE REEL / Gas Discharge Tube 1000 V 3000A (3kA) ±20% 1 Pole User Defined
Datasheet
BK12005002-M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Gas Discharge Tube Arresters (GDT)
Mfr YAGEO
Series BK1-M
Package Tape & Reel
Product Status Active
Voltage - DC Spark Over (Nom) 1000 V
Impulse Discharge Current (8/20µs) 3000A (3kA)
Tolerance ±20%
Number of Poles 1
Fail Short No
Mounting Type User Defined
Package / Case Cylinder No Lead
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.30.8000
Win Source Part Number 1361461-BK12005002-M
Ultra Librarian 3D Model Ultra Librarian BK12005002-M CAD Model

Description

The YAGEO BK1-M Gas Discharge Tube Arrester (GDT) is designed for circuit protection against voltage transients.

  • DC Spark Over Voltage: 1000V
  • Impulse Discharge Current: 3000A (3kA)
  • Package: Cylinder No Lead
  • Mounting Type: User Defined
  • Tolerance: ±20%
  • ECCN: EAR99
  • Manufacturer: YAGEO
  • Product Status: Active
  • Pole Design: Single
  • Fail-Short Prevention: Yes
