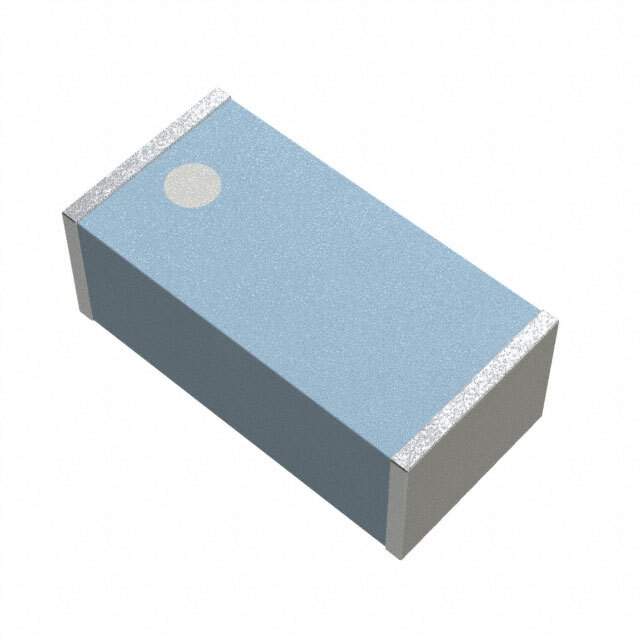

ANT3216LL00R2400A Real Image
Same model may have multiple batches, images only for reference.

ANT3216LL00R2400A

Part No ANT3216LL00R2400A
Manufacturer Yageo
Catalog RF Antennas
Description RF ANT 2.45GHZ CHIP SOLDER SMD / WIRELESS COMPONENTS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Yageo
Packaging Reel
RF Family/Standard 802.15.4, Bluetooth, General ISM, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.45GHz
Frequency Range 2.4GHz ~ 2.5GHz
Antenna Type Chip
Number of Bands 1
Gain 5.05dBi
Power - Max 1W
Termination Solder
Mounting Style SMD
Height (Maximum) 0.047" (1.20mm)
Applications Bluetooth, ISM, Wi-Fi, Zigbee
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 808912-ANT3216LL00R2400A
Ultra Librarian 3D Model Ultra Librarian ANT3216LL00R2400A CAD Model

Description

The Yageo 808912-ANT3216LL00R2400A is a chip antenna designed for Bluetooth, ISM, Wi-Fi, and Zigbee applications.

  • Power Rating: 1W
  • Frequency Range: 2.4GHz to 2.5GHz
  • Gain: 5.05dBi
  • Frequency Group: UHF (2GHz to 3GHz)
  • Height: 0.047" (1.20mm)
  • Mounting Technology: Surface Mount
  • Packaging: Reel
  • Manufacturer Pack Quantity: 3,000
