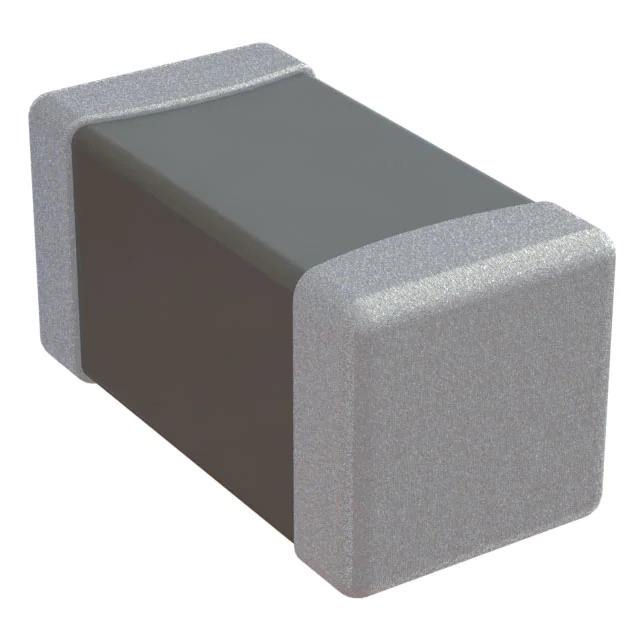

Same model may have multiple batches, images only for reference.
AC0402KRX7R7BB472 Yageo
Same model may have multiple batches, images only for reference.

AC0402KRX7R7BB472

Part No AC0402KRX7R7BB472
Manufacturer Yageo
Catalog Ceramic Capacitors
Description CAP CER 4700PF 16V X7R 0402 / 4700 pF ±10% 16V Ceramic Capacitor X7R 0402 (1005 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr YAGEO
Series AC
Package Tape & Reel
Product Status Active
Capacitance 4700 pF
Tolerance ±10%
Voltage - Rated 16V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features -
Ratings AEC-Q200
Applications Automotive
Failure Rate -
Mounting Type Surface Mount, MLCC
Package / Case 0402 (1005 Metric)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) -
Thickness (Max) 0.022" (0.55mm)
Lead Spacing -
Lead Style -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1359358-AC0402KRX7R7BB472
Ultra Librarian 3D Model Ultra Librarian AC0402KRX7R7BB472 CAD Model

Description

The YAGEO AC0402KRX7R7BB472 is a ceramic capacitor with a capacitance of 4700 pF and a voltage rating of 16V manufactured by YAGEO.

  • Series: AC
  • Mounting Type: Surface Mount
  • Size: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Thickness: 0.022" (0.55mm)
  • Temperature Range: -55°C to 125°C
  • Tolerance: ±10%
  • Application: Automotive (AEC-Q200)
  • Packaging: Tape & Reel
  • REACH Status: Unaffected
  • Temperature Coefficient: X7R
  • Status: Active
