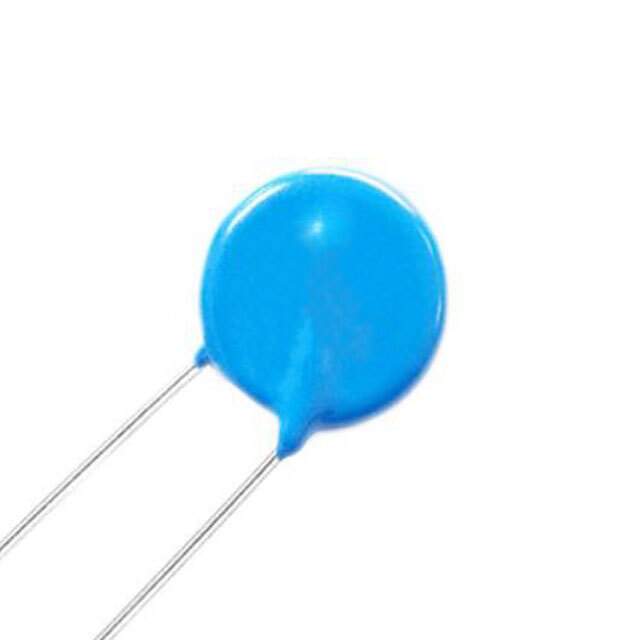

820KD14 Real Image
Same model may have multiple batches, images only for reference.

820KD14

Part No 820KD14
Manufacturer Yageo
Catalog TVS - Varistors, MOVs
Description MOV / 82 V 6 kA Varistor 1 Circuit Through Hole Disc 14mm
Datasheet
820KD14 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Manufacturer Yageo
Packaging Bulk
Maximum AC Volts 50 V
Maximum DC Volts 65 V
Varistor Voltage (Min) 74 V
Varistor Voltage (Typ) 82 V
Varistor Voltage (Max) 90 V
Current - Surge 6 kA
Energy 27J
Number of Circuits 1
Capacitance @ Frequency 2400 pF @ 1 kHz
Temperature Range - Operating -40°C ~ 105°C
Mounting Through Hole
Case / Package Disc 14mm
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Other Part Number 13-820KD14
Standard Package 400
Win Source Part Number 1334782-820KD14
Ultra Librarian 3D Model Ultra Librarian 820KD14 CAD Model

Description

The 820KD14 is an electronic component manufactured by Yageo.

  • Type: TVS-Varistors, MOVs
  • Maximum DC Voltage: 65V
  • Maximum AC Voltage: 50V
  • Varistor Voltage Range: 74V to 90V
  • Surge Current: 6kA
  • Energy Rating: 27J
  • Capacitance: 2400 pF @ 1 kHz
  • Temperature Range: -40°C ~ 105°C
  • Standard Package: 400
