Same model may have multiple batches, images only for reference.

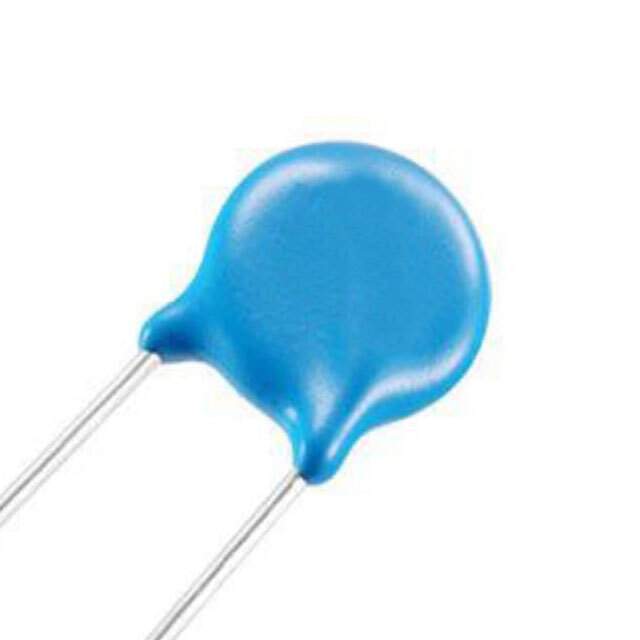

820KD10 Real Image
Same model may have multiple batches, images only for reference.

820KD10

Part No 820KD10
Manufacturer Yageo
Catalog TVS - Varistors, MOVs
Description MOV  /  82 V 3.5 kA Varistor 1 Circuit Through Hole Disc 10mm
Datasheet
820KD10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr YAGEO
Series 10D
Package Bulk
Maximum AC Volts 50 V
Maximum DC Volts 65 V
Varistor Voltage (Min) 74 V
Varistor Voltage (Typ) 82 V
Varistor Voltage (Max) 90 V
Current - Surge 3.5 kA
Energy 12J
Number of Circuits 1
Capacitance @ Frequency 1200 pF @ 1 kHz
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting Type Through Hole
Package / Case Disc 10mm
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Other Names 13-820KD10
Standard Package 500
Win Source Part Number 1133559-820KD10
Ultra Librarian 3D Model Ultra Librarian 820KD10 CAD Model

Description

The 1133559-820KD10 is a 10D series varistor from YAGEO, designed for circuit protection against transient voltage spikes.

  • Manufacturer: YAGEO
  • Series: 10D
  • Application: Circuit Protection
  • Capacitance: 1200 pF @ 1 kHz
  • Varistor Voltage: 74 V to 90 V
  • Maximum AC Voltage: 50 V
  • Maximum DC Voltage: 65 V
  • Surge Current: 3.5 kA
  • Energy Rating: 12 J
  • Mounting Type: Through Hole
  • Package: Disc 10mm
  • Operating Temperature: -40°C to 105°C (TA)
  • ECCN: EAR99
  • Packaging: Bulk
  • Standard Package: 500
